VideoSecu Articulating Arm TV Wall Mount for Changhong UD42YC5500UA LED49YD1100UA UD49YC5500UA UD55YC5500UA LED HDTV Tilt Swivel Full Motion TV Mount Bracket with VESA 400x400/ 400x300/ 200x200mm BJZ

The articulating TV wall mount ML531BE fits most 22-50 inch LED LCD plasma, some LED up to 55 inch with VESA mounting hole patterns 400/ 300/ 200/ 100mm. Heavy duty steel construction supports screen weight up to 88lbs. Multi-directional adjustable tilt 15 degrees forward or 5 degrees backward, swivel up to 180 degrees and smooth long extension up to 20" provide optimum viewing angle in different positions. Heavy duty steel construction offers a smooth surface and high tech look while providing strength and stability. Nesting arm design allows display to be folded parallel to the wall only 2.2" for low profile application.

The removable VESA plate can be taken off for quick and easy installation. Absolutely your best choice!

*Warning: This mount does not fit 42" or above TVs which were manufactured before 2013

Specification:
*Fits most 22 - 50" TV, some LED up to 55" (please check VESA and weight)

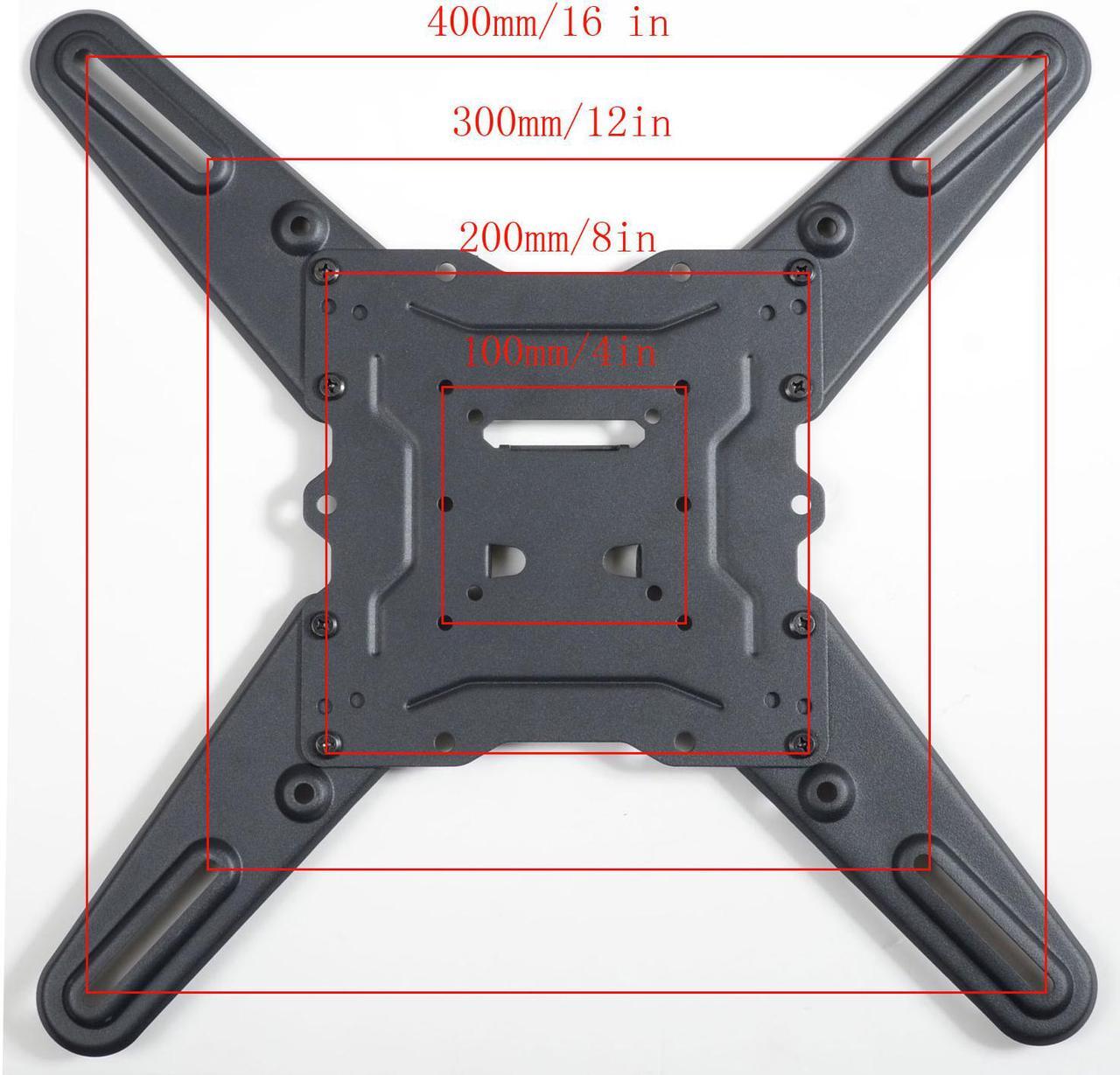

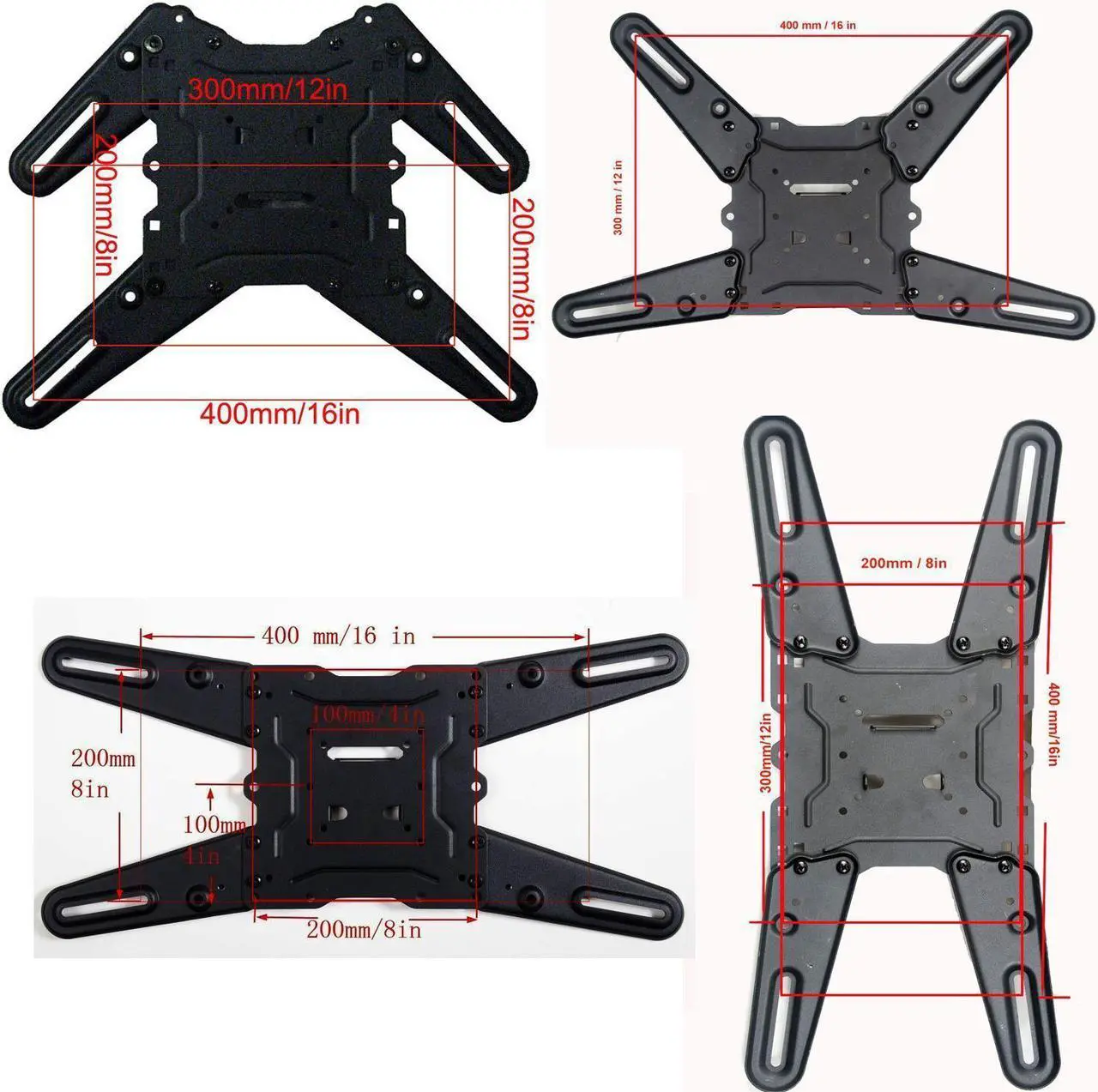

*Fits VESA mounting holes patterns: 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100/ 100x100mm
*Loading capacity to 88lbs/40kg
* Tilt +5° or -15º for perfect viewing angle
*Swivel up to 180 degrees (depending on TV size)

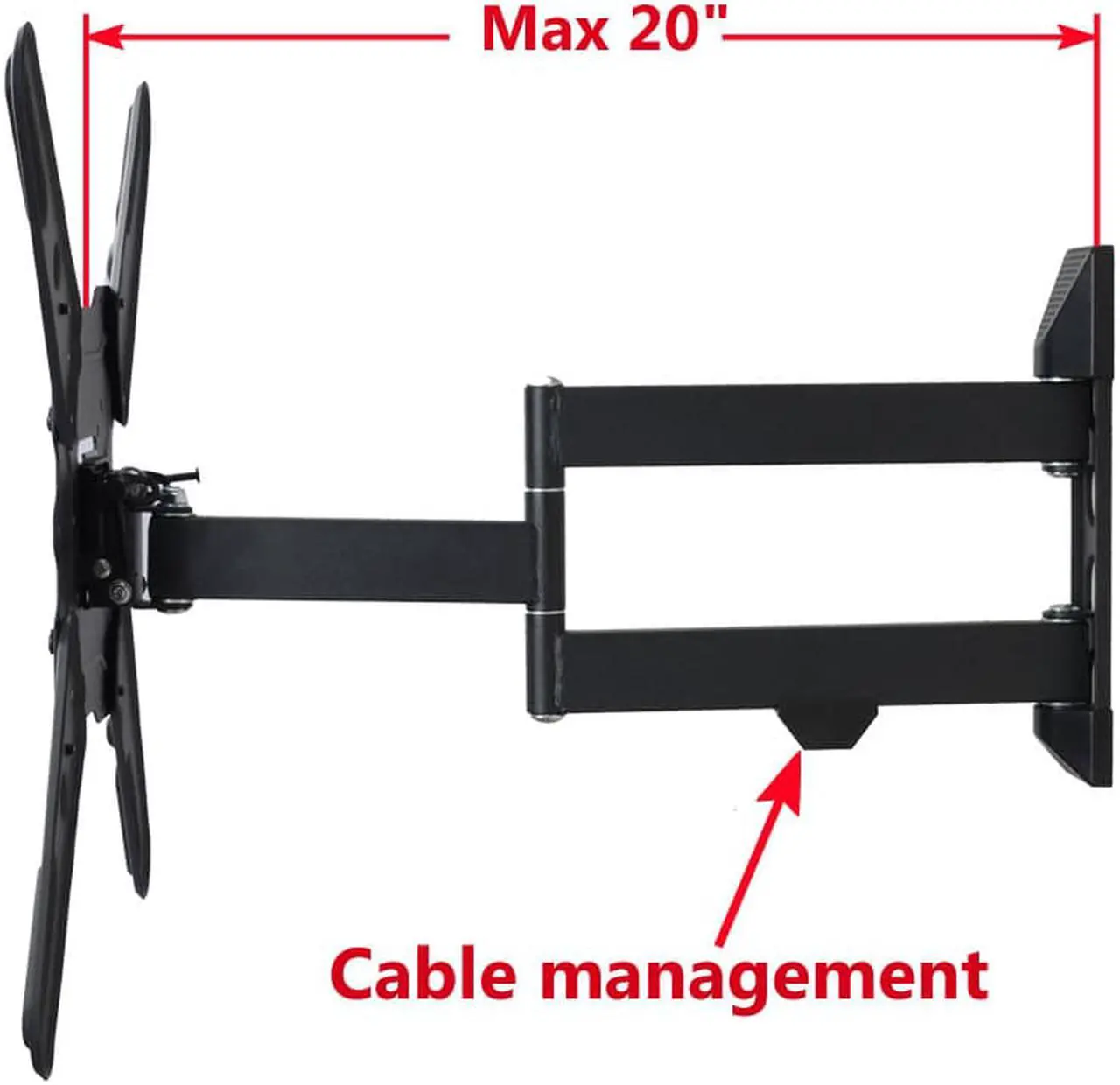

*Smooth long extension up to 20" with maximum flexibility
*Depth: the mount retracts to the wall about 2.2" for low profile application

Features:

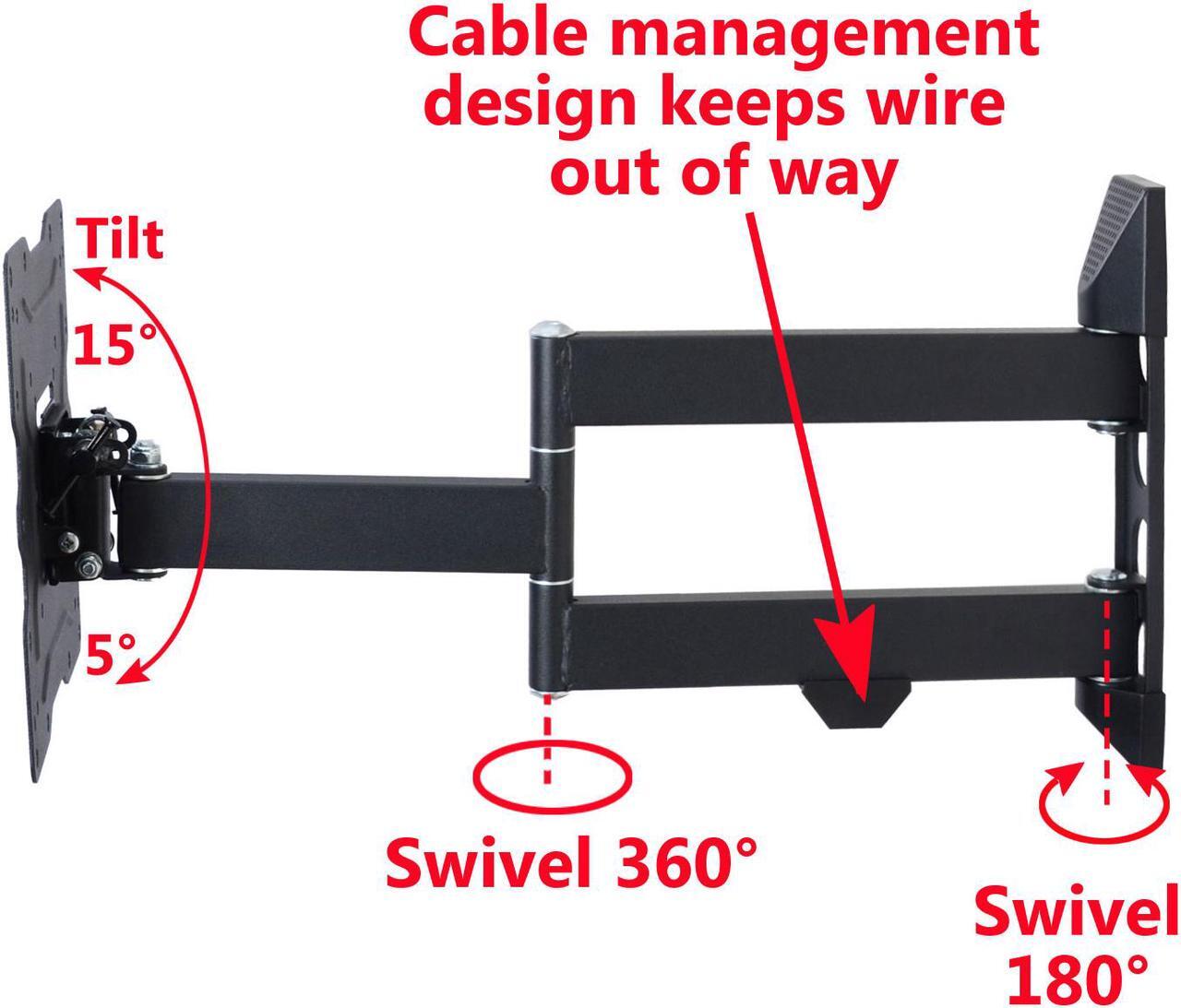

*Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
*Integrated cable management design on articulating arm keeps wire out of the way
*Premium quality: constructed with thick, heavy duty durable steel with powder-coated black finish

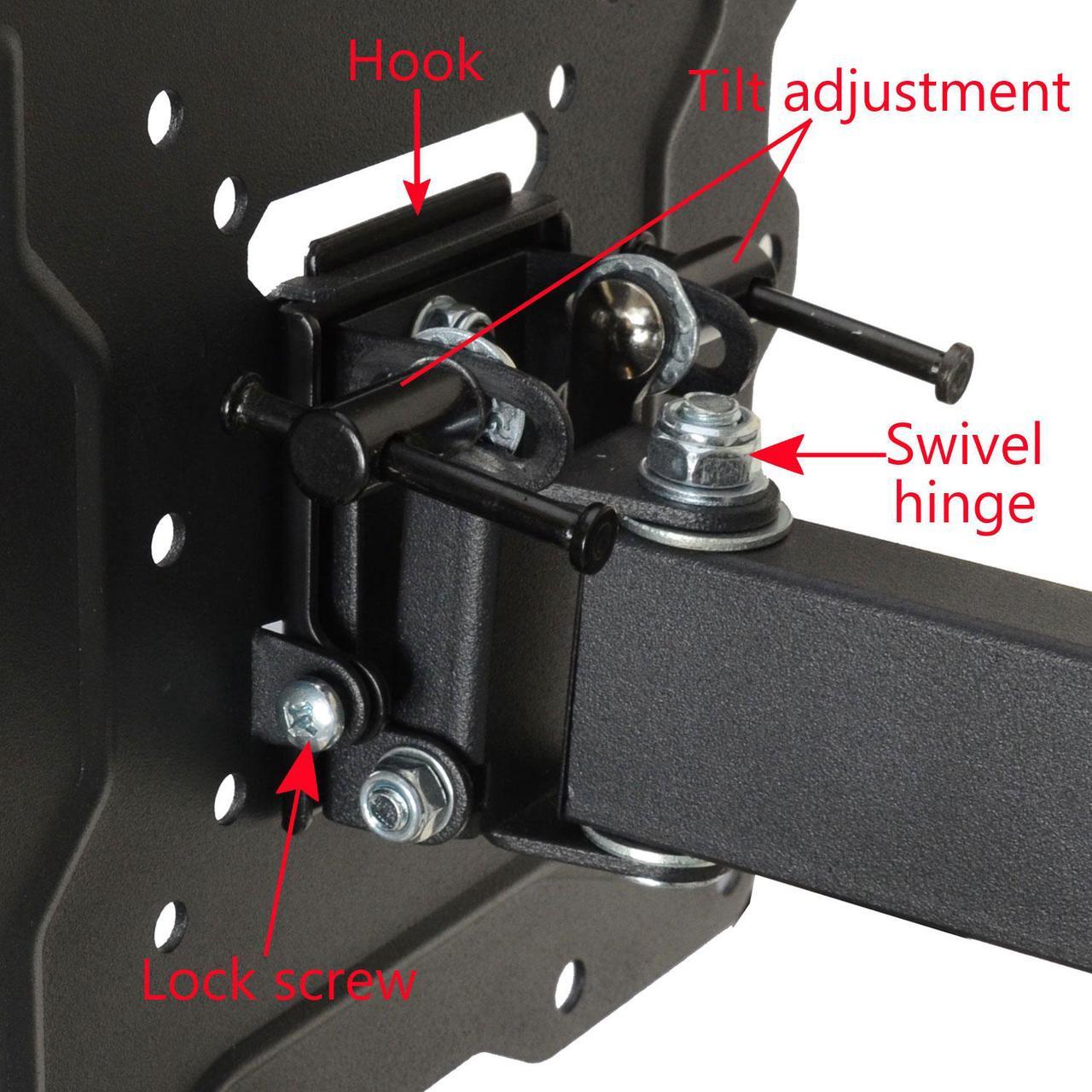

*Post-installation level adjustment allows the TV to perfectly level
*Nesting arm design allows display to be folded parallel to the wall to save space

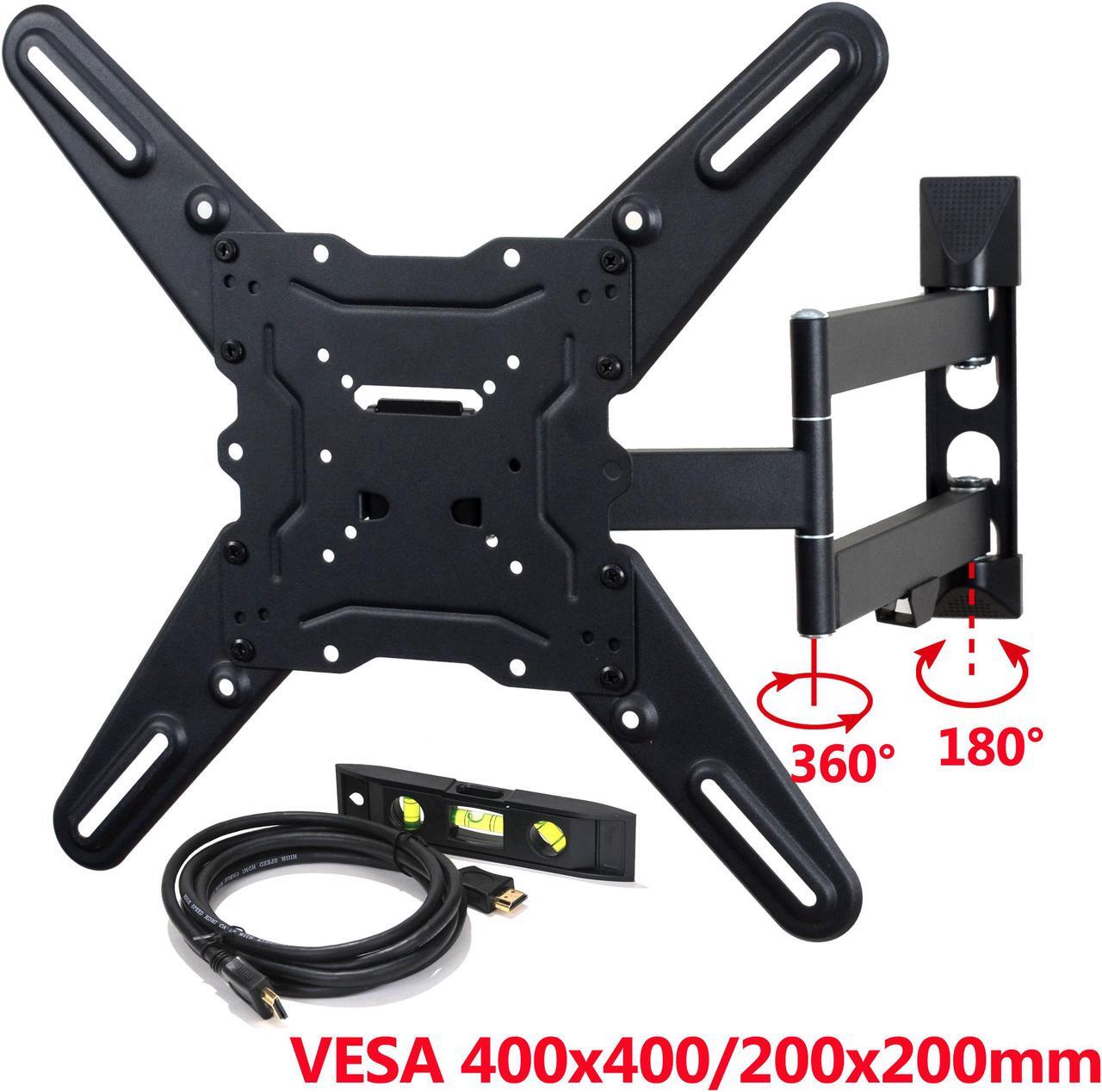

*With 4 VESA adapters VESA mounting hole patterns up to 400x400mm/16"x16"
*Free 6" 3-axis magnetic bubble level ensures easy and accurate install
*Single stud mounting
*Note: For some LG and SONY TVs, please check the area inside the 4 mounting holes to make sure there are not any plugs. Otherwise, the plate may block the plugs

Package Contents:
TV wall mount, 4 VESA adapters, free 10ft high speed HDMI cable, 6" 3-Axis magnetic bubble level, standard mounting hardware, user manual

Please check whether the mount is suitable for your TV:

1. Do not use size of your TV to determine if the wall mount will fit.

2. Please check the weight of your TV displays, it must be less than 88 lbs.

3. Please look at the back of your TV, find the mounting hole and measure width and height, if the pitch-row is one of the following data, then the mount will work perfect for you, 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100/ 100x100mm
