Wavlink USB C Docking Station 4K Triple Display USB C Hub With DP& HDMI& VGA, 85W PC Charging, SD TF Card Reader, Gigabit Ethernet, 4 USB Ports, Audio for Dell XPS 13/15,Lenovo Yoga, MacBook Pro
Limited time offer, ends 07/20 By Wavlink Technology
One for All Capability: Turn 1 USB C port into 1 DP & 1 HDMI port up to 4K/30Hz, 1 VGA port up to 2K/60Hz, 2 USB2.0 & 2 USB 3.0, 1 gigabit Ethernet port, 1 SD&TF card reader, 1 phone jack
4K Ultra HD and Triple Display: Three different display interface for different needs. Mirror or extend your screen with the HDMI, DP and VGA ports and directly stream 4K@60 UHD video to HDTV, monitors, or projectors for a cinema-like visual feast. Please note ONLY Windows system support MST and SST (Mirror & Extend Mode) and VGA is NOT available for Mac OS when using more than 1 external monitor. Mac OS only support mirror mode and non-mirror mode. Non-mirror mode means that the two external monitors(HDMI+DP) are same but different from laptop
Safe PD Charging: Supports charging up to 100W (Maximum 85W to laptop and 15W to other ports), allowing you to charge up your laptop at high-speed while retaining full function of the hubs other ports (Additional charger is needed, package not include)
+
+
Overview
Specs
Reviews (209)
Wavlink USB-C Triple Display 4K MST Docking Station with USB Power Delivery
Slim and compact base dock design with high strength cable provides additional durability and good heat dissipation effect. This MST Docking support triple display under USB-C Video Alternate Mode, resolution up to 1080p and if the single DP or HDMI display will up to 4K@30. Besides, it allows you to expand more USB devices, for example external storage, keyboard, mouse, headset, optical drive. Gigabit Ethernet quickly upload and download photos, videos, music and other files. Plug & Play, no need external software driver installation.
Features:
Connect the World with WAVLINK 12-in-1 MST Dock
1 USB-C port supports PD 3.0 upstream power charging to PC computer maximum up to 100Watt Single DisplayPort: 4K/30Hz max.
1 Displayport (V1.2a) & 1 HDMI port (V1.4b) support single display up to 3840x2160@30.
1 VGA port supports single display up to 2K 2048x1152@60 .
(Dual display up to 2048x1152@60; Triple display up to 1920x1080@60 )
2 USB 3.0 Ports & 2 USB 2.0 Ports provide a data transfer rate up to 5Gbps & 480Mbps, allowing faster file transfer and more wireless devices connection
1 RJ45 gigabit Ethernet port backward 10/100 Ethernet, enables you to have a more stable wired connection, enjoying faster data transmission.
1 built-in SD/TF card reader supports SD V2.0, SDHC up to 32GB; SDXC up to 2TB, good for camera users.
1 Phone Jack for stereo audio out and microphone in, you can connect professional audio devices.
Triple 4K Display in 2 Modes
This MST dock features 1 DP port, 1 HDMI port and 1 VGA port, supports single/dual/triple three kinds of display in mirror/extend mode, you can enjoy HD entertainment or multitask at the same time.
Aluminum Alloy for Better Heat Dissipation
Lightweight aluminum alloy case provides a stronger heat dissipation effect than plastic material, the structure is secure and reliable, ideal for your daily use.
Working Standard
1. USB-C: PD Power Adapter I/P 2. Single DisplayPort: 4K/30Hz max. 3. Single HDMI: 4K/30Hz max. 4. Single VGA: 2K/60Hz max. 5. 2 x USB-A Port: 5Gbps 6. 2 x USB-A Port: 480Mbps 7. RJ45: Gigabit Ethernet 8. CardReader: SD / TF 9. Phone Jack: Stereo 4pole TRRS Stereo
Package Content
1. USB-C Triple Display MST Docking Station
2. Quick Installation Guide
System Requirement:
1. USB-CComputer had USB3.1 full function with data transfer, USB-C Power Delivery & Video Alternate Mode
2. Windows 7 /8 /10 or later
3. MacOS 10.X or above
Compatibility: This slim compact dock is compatible with USB-C Computers that have USB3.1 full function with data transfer, USB-C Power Delivery & Video Alternate Mode. Eg: Windows 7 /8 /10 or later, MacOS 10.X or above
Note about Compatibility
With more outstanding MST chipset, this docking enables to triple display, but it also has a higher requirement on the PC laptops, please make sure your computer has USB-C that supports USB3.1 full function with data transfer, USB-C Power Delivery & Video Alternate Mode .
Examples:
Windows 7 /8 /10 or later
MacOS 10.X or above

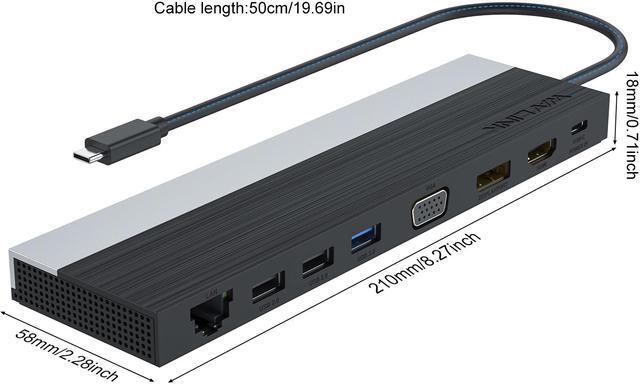

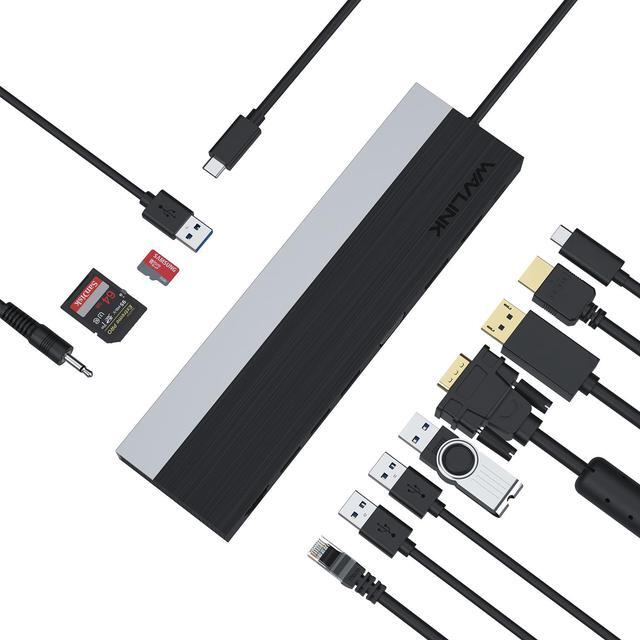

Wavlink USB-C Triple Display 12-in-1 Docking Station
This docking station connects to your laptop via USB-C* and adds a rich array of ports. Through a single USB-C connection, you can connect up to three monitors, four USB devices and an audio device, plug into Ethernet for fast, stable network, and access your SD and microSD cards. The case is built using aluminum alloy to improve heat dissipation and features a slim profile for easy portability.
* Require laptops with full-function USB-C.
Notice: When using on an Apple computer with an M1 chip, there is no sound output from the Displayport interface, and subsequent OS updates may solve this problem.
Features
Connect the World with WAVLINK 12-in-1 MST Dock
The Wavlink type-c hub supports a high-level of charging up to 100W( Maximum 85W to laptop and 15W to other ports), allowing you to charge up your laptop at high-speed while retaining full function of the hub’s other ports. (Additional charger is needed)

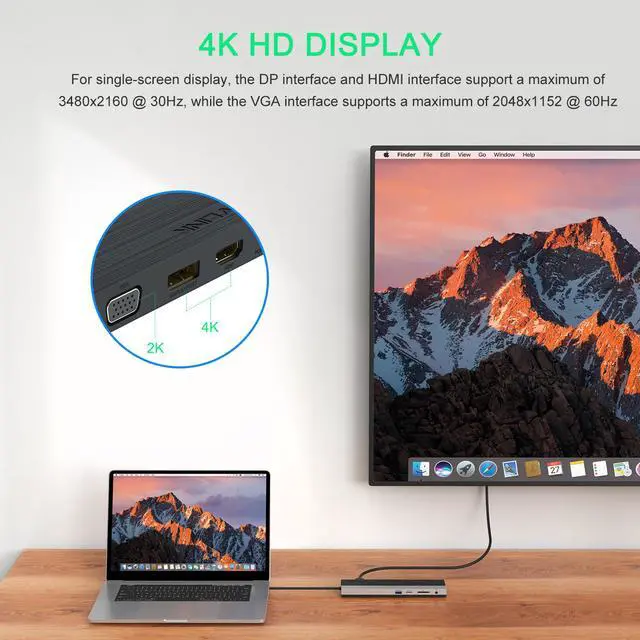

Both DisplayPort v1.2a and HDMI v1.4b support 4K/30Hz single display
One VGA port supports up to 2K (2048x1152) @60Hz single display
Dual displays up to 2048x1152 @60Hz; Triple displays up to 1920x1080 @60Hz, two 1920x1080 @60Hz, one below 1920x1080 @60Hz

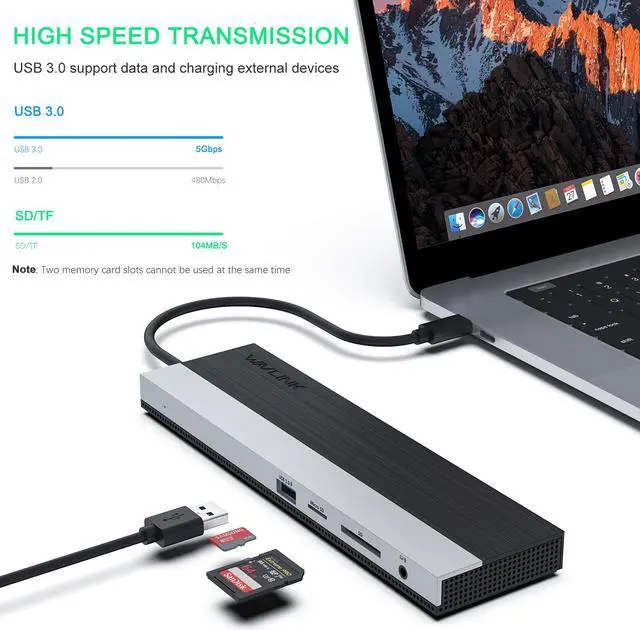

Two USB 3.0 ports and two USB 2.0 ports provide data transfer rates up to 5Gbps & 480Mbps separately

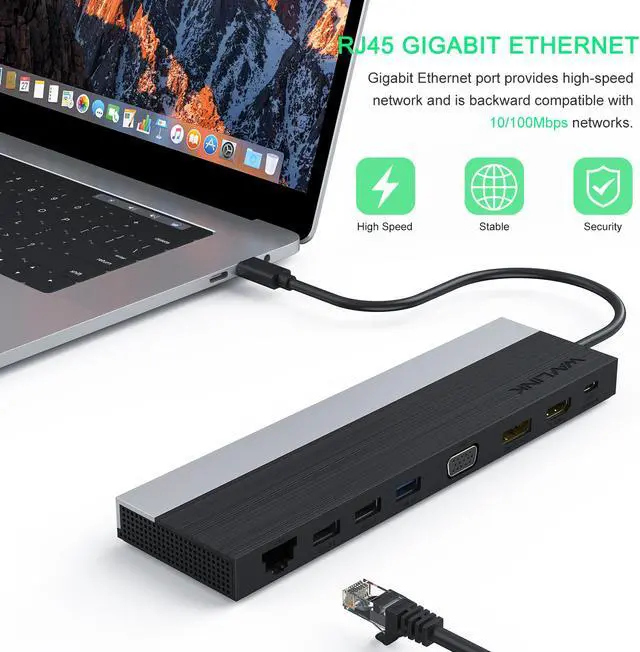

One RJ45 Gigabit Ethernet port enables stable wired connection
One built-in SD/TF card reader supports SD v2.0, SDHC up to 32GB, and SDXC up to 2TB
One audio combo jack for stereo audio out and microphone in

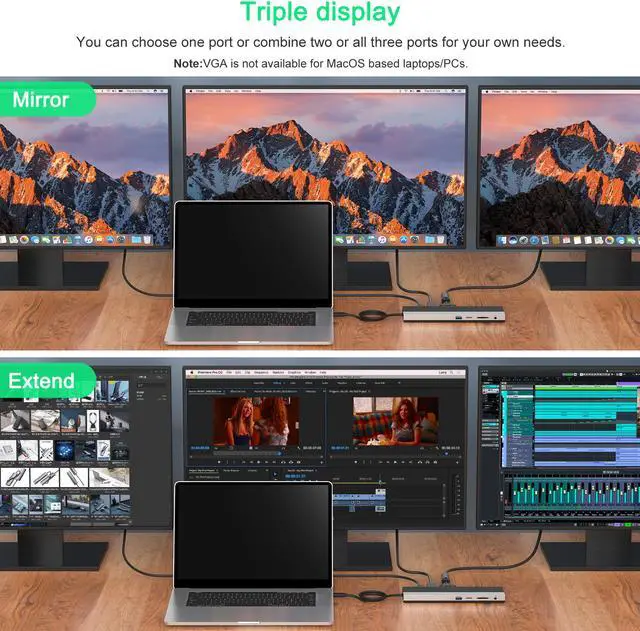

Triple Display in 2 Modes
This MST dock features one DisplayPort, one HDMI port and one VGA port, supporting single/dual/triple displays in mirror/extend mode. You can enjoy HD entertainment or multitask at the same time.
Note:
VGA is not available for MacOS based laptops/PCs. For Apple computer users (MacOS ), displays are Mirror mode only.
Aluminum Alloy for Better Heat Dissipation
Lightweight aluminum alloy case provides stronger heat dissipation than plastic material. It is secure and reliable, ideal for your daily use.

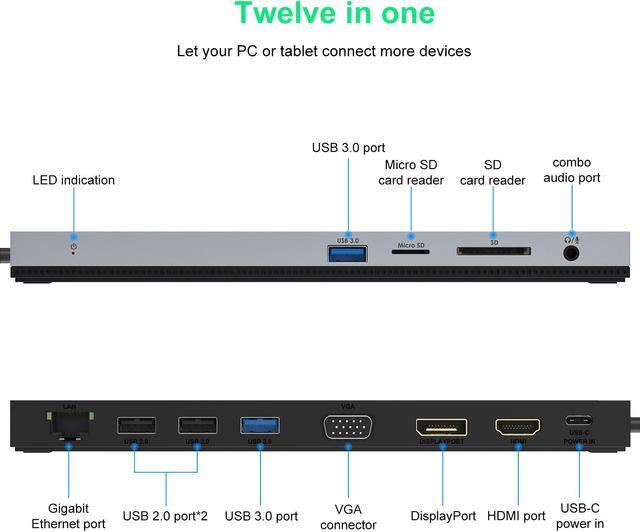

Working Standard
1. USB-C: PD Power Adapter I/P
2. Single DisplayPort: 4K/30Hz max.
3. Single HDMI: 4K/30Hz max.
4. Single VGA: 2K/60Hz max.
5. 2 x USB-A Port: 5Gbps
6. 2 x USB-A Port: 480Mbps
7. RJ45: Gigabit Ethernet
8. Card Reader: SD / TF
9. Phone Jack: Stereo 4pole TRRS Stereo
System Requirement:
1. USB-C computer that supports USB 3.1 full-function with data transfer, USB-C Power Delivery and Video Alternate Mode
2. Windows 7 /8 /10 or later
3. MacOS 10.X or above
Package Content
1. USB-C Triple Display MST Docking Station
2. Quick Installation Guide
Compatibility
With an outstanding MST chipset, this dock enables triple display support, but it also has a higher requirement on the PC laptops. Please make sure your computer has USB-C that supports USB 3.1 full-function with data transfer
