    10Gtek For Intel I210T1 PCI-Express Network Adapter, 10/100/1000Mbps Gigabit Network Card with Intel I210 Chip Single RJ45 Port to PCI Express 2.1 x1

    (17)(1) Write a Review
    • 1 x RJ45
    • 2 x RJ45
    • 2 x SFP
    • 4 x RJ45
    • 1 x SFP
    • Compatible Intel X540-T2
    • Compatible Intel EXPI9301CT
    • Compatible Intel X520-DA1
    • Compatible Intel X520-DA2
    • Compatible Intel X540-T1
    • Compatible Intel X550-T1
    • Compatible Broadcom BCM57810S
    • Compatible Realtek RTL8125
    • Compatible Intel 82576
    • Compatible Intel 82571
    • Intel I350AM4(4*RJ45)
    • Intel I210
    • Equipped with original Intel I210 controller chip which supports Intelligent Offloads and make the servers more stable. Compare to Intel I210-T1.
    • Compatible with Windows XP/Vista, Windows 7 SP1, Windows Server 2003/ 2008, Windows CE 6/ 7/ WEC7, Windows Embedded Standard 7, Linux, VMware ESX/ESXi*.

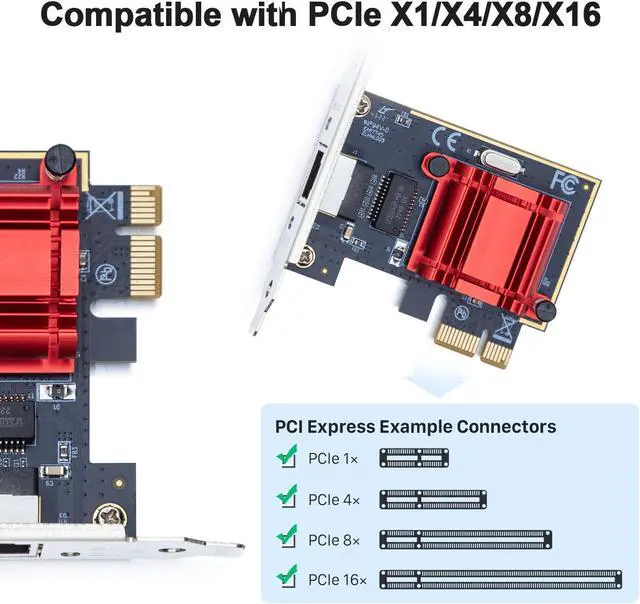

    • Single copper RJ45 ports let you connect to Category-5 and up to 100m for meeting the demands of data center environments. PCI Express* 2.1. 2.5 G T/s X1 Lane is suitable for PCI-E X1/ X4/ X8/ X16 slots.
    • Driver CD is included natively, you also can download it from Intel website. With profile bracket and additional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.
    • What You Get: 10Gtek I210 Network Card 1GbE PCI-E X1 Network Card (compare to Intel I210-T1) x1, Driver CD x1, Low-profile Bracket x1.
    • NOT support hot swaping!
    +
    +
    Overview
    Specs
    Reviews (17)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Specifications:
    Connector: RJ45 (Copper)
    IEEE standard: IEEE 802.3 /10Base-T, 100Base-T, 1000Base-T
    Cabling: Category-3 or Higher for 10Base-T Operation Category-5 or Higher for 100Base-T Operation Category-5e or Higher for 1000Base-T Operation Data Rate Supported per port: 10/100/1000 Mbps copper
    Bus Type: PCI-Express * 2.1
    Bus Width: 1x
    Lan PCI Express Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
    Operation Temperature: 0°C-55°C
    Storage Temperature: - 40 °C-70°C
    Feature:     single-port PCI-Express* 10/100/1000 Ethernet adapter Innovative power management features including Energy Efficient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption IEEE 802.1Q av Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation High-performing design supporting PCI Express* Gen 2.1 2.5GT /s Reliable and proven Gigabit Ethernet technology from Intel Corporation
    Products
    82571-GE-2T-X1 82571-GE-2T-X1
    82574-GE-1T-X1 82574-GE-1T-X1
    82576-GE-2T-X1 82576-GE-2T-X1
    I210-GE-1T-X1 I210-GE-1T-X1
    I350-GE-4T-X4 I350-GE-4T-X4
    Replacement for - EXPI9301CTBLK E1G42ET I210-T1 I350-T4
    Controller 82571 82574L 82576EB I210AT I350-AM4
    Port Configure (2x) RJ-45 (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (4x) RJ-45
    System Interface Type PCIe X1 PCIe X1 PCIe X1 PCIe X1 PCIe X4
    WOL X X Yes Yes Yes
    SR - IOV X X Yes X Yes
    Jumbo Frames Yes , up to 9.5KB Yes , up to 9KB Yes , up to 9.5KB Yes , up to 9.5KB Yes , up to 9.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12
    Unsupported Note Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode Vmware Esxi 7.0, Mac OS, Bypass Mode Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes X X Yes Yes
    Products
    X520-10G-1S-X8 X520-10G-1S-X8
    X520-10G-2S-X8 X520-10G-2S-X8
    X540-10G-1T-X8 X540-10G-1T-X8
    X540-10G-2T-X8 X540-10G-2T-X8
    X550-10G-1T-X4 X550-10G-1T-X4
    X550-10G-2T-X4 X550-10G-2T-X4
    Replacement for X520-DA1 X520-DA2 X540-T1 X540-T2 X550-T1 X550-T2
    Controller 82599EN 82599ES X540-AT2 X540-AT2 Intel X550-AT Intel X550-AT2
    Port Configure (1x) SFP+ (2x) SFP+ (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (2x) RJ-45
    System Interface Type PCIe X8 PCIe X8 PCIe X8 PCIe X8 PCIe X4 PCIe X4
    WOL X X X X X X
    SR - IOV Yes Yes Yes Yes Yes Yes
    Jumbo Frames Yes , up to 15.5KB Yes , up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
    Unsupported Note Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes Yes - Yes - Yes
    Products
    X710-10G-2S-X8 X710-10G-2S-X8
    XL710-10G-4S-X8 XL710-10G-4S-X8
    Replacement for X710-DA2 X710-DA4
    Controller X710-BM2 XL710-BM1
    Port Configure (2x) SFP+ (4x) SFP+
    System Interface Type PCIe X8 PCIe X8
    WOL X X
    SR - IOV Yes Yes
    Jumbo Frames Yes , up to 9.5KB Yes , up to 9.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
    Unsupported Note Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes Yes
