    10Gtek For 10 GbE Intel Ethernet Converged Network Adapter Card X550-T1 w/ Controller X550-AT, Single RJ45 port to PCIe 3.0 x4, Support Windows Server/Windows/Linux/ESX

    (17)(1) Write a Review
    • 1 x RJ45
    • 2 x RJ45
    • 2 x SFP
    • 4 x RJ45
    • 1 x SFP
    • Compatible Intel X540-T2
    • Compatible Intel EXPI9301CT
    • Compatible Intel X520-DA1
    • Compatible Intel X520-DA2
    • Compatible Intel X540-T1
    • Compatible Intel X550-T1
    • Compatible Broadcom BCM57810S
    • Compatible Realtek RTL8125
    • Compatible Intel 82576
    • Compatible Intel 82571
    • Intel I350AM4(4*RJ45)
    • Intel I210
    • Equipped with 10Gtek controller chip which make the servers more stable.
    • Compatible with Windows Server 2008/ 2019, Linux, FreeBSD* 9 and FreeBSD* 10, UEFI* 2.1, UEFI* 2.3, VMware ESXi 5.1 (Limited Functionality), VMware ESXi 5.5.
    • Single copper RJ45 ports(100MbE/1GbE/10GbE) let you connect to network cable for meeting the demands of data center environments. PCIe v3.0 (8.0GT/s) (Compatible with 2.0 and 1.1), X4/X8/X16 Lane.
    • Driver CD is included natively. With profile bracket and additional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.
    • What You Get: 10Gtek 10GbE X4 PCI-E Network Card X550-10G-1T (compare to Intel X550-T1) x1, Driver CD x1, Low-profile Bracket x1
    • NOT support hot swaping!
    +
    +
    Overview
    Specs
    Reviews (17)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Product description
    Size:X550-10G-1T (1x 10GBase-T Port)
    10 GbE Converged Network Adapter(CNA/NIC) with Single RJ45 Port(1 GbE/10 GbE/100MbE)

    Features:
    IEEE 802.1Q* VLANs
    IEEE 802.3 2005* flow control supported
    IEEE 10 GbE 802.3ap
    IEEE 1000BASE-BX

    Support for jumbo frames of up to 15.5 KB
    Storage over Ethernet: iSCSI, FCoE, NFS
    Support SNMP RMON
    Suppor MSI-X
    Support Tx TCP segmentation offload (IPv4, IPv6),Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
    Suppor Virtual Machine Device queues2 (VMDq)

    Specifications:
    Part number:X550-10G-1T (compare to Intel X550-T1)
    Interface: Single RJ45 Port (1GbE/10GbE/100MbE)

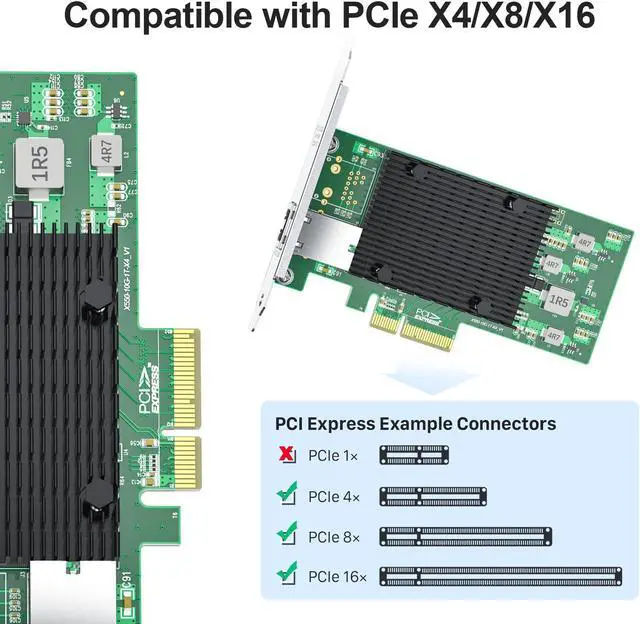

    PCI: PCI Express v3.0 (8.0GT/s) (Compatible with 1.1/2.0), X4/X8/X16 Lane
    Thermal Design Power:Typical power: 7.4w; Maximum power: 8.4W
    Operating Temperature: 0 ° ~ 55 ° C (32 °F to 131 °F)
    Storage Temperature: -40 ° ~ 70 ° C (-40 °F to 158 °F)
    Storage Humidity:90%, non-condensing

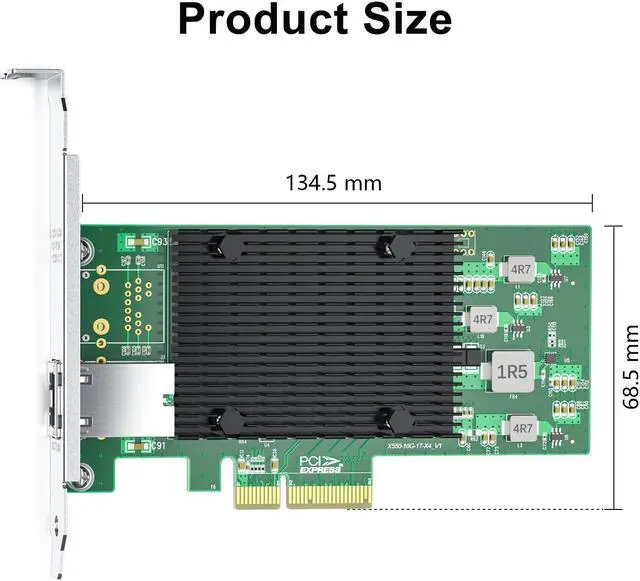

    Dimension: 130*68*1.6mm
    Products
    82571-GE-2T-X1 82571-GE-2T-X1
    82574-GE-1T-X1 82574-GE-1T-X1
    82576-GE-2T-X1 82576-GE-2T-X1
    I210-GE-1T-X1 I210-GE-1T-X1
    I350-GE-4T-X4 I350-GE-4T-X4
    Replacement for - EXPI9301CTBLK E1G42ET I210-T1 I350-T4
    Controller 82571 82574L 82576EB I210AT I350-AM4
    Port Configure (2x) RJ-45 (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (4x) RJ-45
    System Interface Type PCIe X1 PCIe X1 PCIe X1 PCIe X1 PCIe X4
    WOL X X Yes Yes Yes
    SR - IOV X X Yes X Yes
    Jumbo Frames Yes , up to 9.5KB Yes , up to 9KB Yes , up to 9.5KB Yes , up to 9.5KB Yes , up to 9.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12
    Unsupported Note Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode Vmware Esxi 7.0, Mac OS, Bypass Mode Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes X X Yes Yes
    Products
    X520-10G-1S-X8 X520-10G-1S-X8
    X520-10G-2S-X8 X520-10G-2S-X8
    X540-10G-1T-X8 X540-10G-1T-X8
    X540-10G-2T-X8 X540-10G-2T-X8
    X550-10G-1T-X4 X550-10G-1T-X4
    X550-10G-2T-X4 X550-10G-2T-X4
    Replacement for X520-DA1 X520-DA2 X540-T1 X540-T2 X550-T1 X550-T2
    Controller 82599EN 82599ES X540-AT2 X540-AT2 Intel X550-AT Intel X550-AT2
    Port Configure (1x) SFP+ (2x) SFP+ (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (2x) RJ-45
    System Interface Type PCIe X8 PCIe X8 PCIe X8 PCIe X8 PCIe X4 PCIe X4
    WOL X X X X X X
    SR - IOV Yes Yes Yes Yes Yes Yes
    Jumbo Frames Yes , up to 15.5KB Yes , up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
    Unsupported Note Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes Yes - Yes - Yes
    Products
    X710-10G-2S-X8 X710-10G-2S-X8
    XL710-10G-4S-X8 XL710-10G-4S-X8
    Replacement for X710-DA2 X710-DA4
    Controller X710-BM2 XL710-BM1
    Port Configure (2x) SFP+ (4x) SFP+
    System Interface Type PCIe X8 PCIe X8
    WOL X X
    SR - IOV Yes Yes
    Jumbo Frames Yes , up to 9.5KB Yes , up to 9.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
    Unsupported Note Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes Yes
