    10Gtek For Intel X540-T2 Ethernet Adapter with Intel X540 Controller, 10Gb Ethernet Network Card, Dual Port RJ45 Copper, PCI Express 10Gb Nic Ethernet LAN Adapter

    (17)(1) Write a Review
    • 1 x RJ45
    • 2 x RJ45
    • 2 x SFP
    • 4 x RJ45
    • 1 x SFP
    • Compatible Intel X540-T2
    • Compatible Intel EXPI9301CT
    • Compatible Intel X520-DA1
    • Compatible Intel X520-DA2
    • Compatible Intel X540-T1
    • Compatible Intel X550-T1
    • Compatible Broadcom BCM57810S
    • Compatible Realtek RTL8125
    • Compatible Intel 82576
    • Compatible Intel 82571
    • Intel I350AM4(4*RJ45)
    • Intel I210
    • Compatible with Windows Server 2003/ 2008/ 2012, Windows7/8/10*/Visa, Linux, ESX/ESXi*. Storage over Ethernet: iSCSI, FCoE, NFS. (Only by setting up Windows 10 driver correctly the NIC can work on Windows 11!
    • Equipped with 10Gtek controller chip which supports Intelligent Offloads and make the servers more stable.

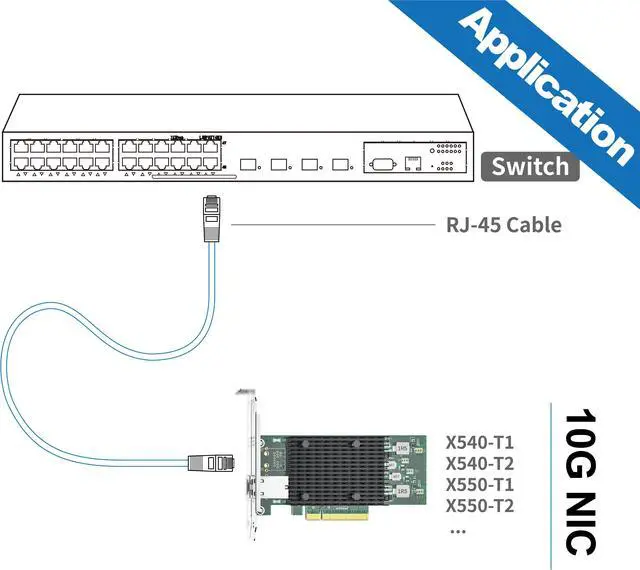

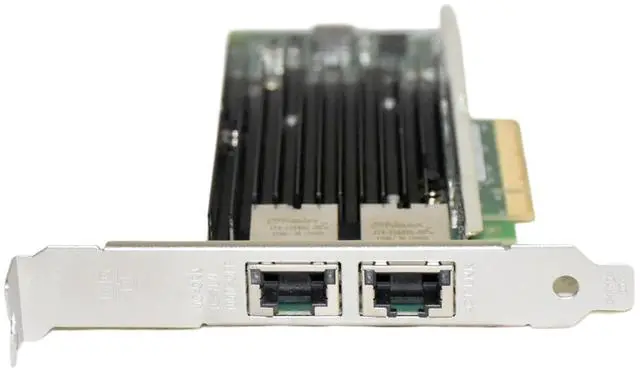

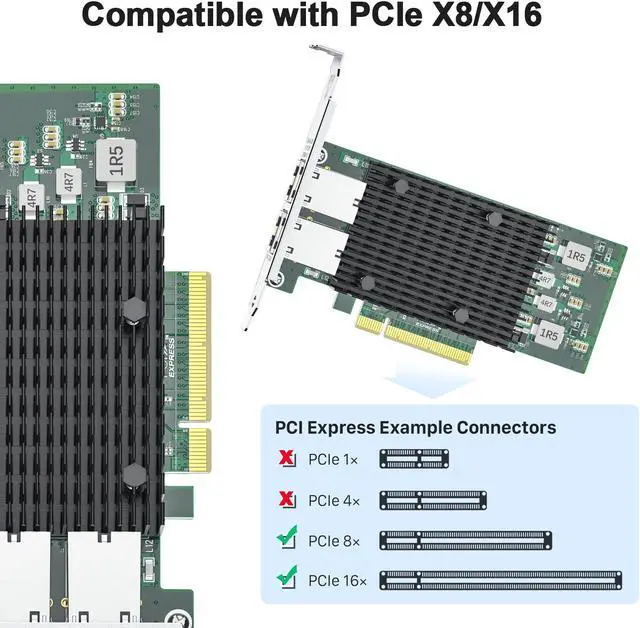

    • Dual copper RJ45 ports let you connect to Category-6A and up to 100m((Category-6 up to 55 m) for meeting the demands of data center environments. PCI Express* 2.1. 5.0 G T/s X8 Lane is suitable for both PCI-E X8 and PCI-E X16 slots.

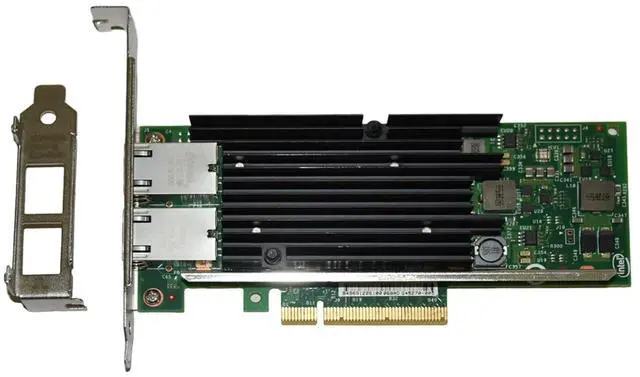

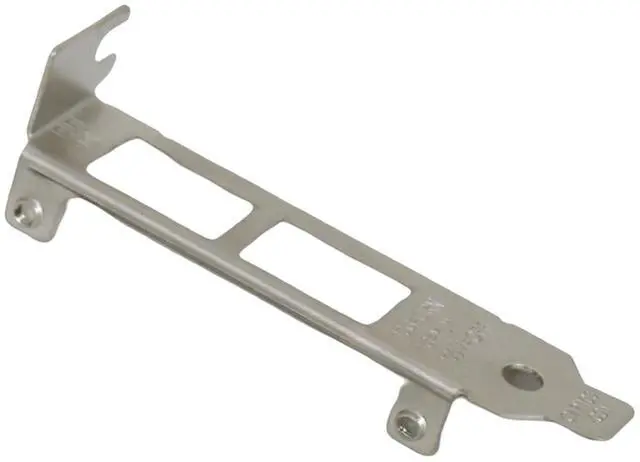

    • Driver CD is included natively. With profile bracket and additional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.
    • What You Get: 10Gtek 10GbE PCI-E X8 Network Card X540-10G-2T (compare to Intel X540-T2) x1, Driver CD x1, Low-profile Bracket x1. Backed by 10Gtek 30 Days Free-returned, 1 Year Free Warranty and Lifetime Technology Support.
    • NOT support hot swaping!
    +
    +
    Overview
    Specs
    Reviews (17)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    X540-10G-2T-X8
    10Gtek's WG-X540-T2 10 gigabit lan card is the latest innovation in Intel's leadership to drive 10 Gigabit Ethernet into the broader server market. This lan card hosts Intel's latest Ethernet silicon, the Intel Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms.
    Features:
    10GBASE-T Simplifies the Transition to 10 GbE;
    10G Performance at Low Cost and Low Power;
    Exciting New Data Center Usage Models;
    Unified Networking (iSCSI, FCoE and LAN); Flexible Port Partitioning (FPP);
    Flexible I/O Virtualization (VMDq and SR- IOV): 10GBase-T network card includes Intel Virtualization Technology for connectivity (Intel VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the Intel X540 controller on the adapter;
    Flexible Port Partitioning (FPP);
    Data Center Bridging (DCB) delivers Lossless Ethernet.

    Techincal Parameters:
    Vertical Segment:Server
    # of Ports:Dual
    Speed & Slot Width:5.0 GT/s, x8 Lane
    System Interface Type:PCIe v2.1 (5.0GT/s)
    Cable Medium:Copper
    Cabling Type:RJ-45 Category-6 up to 55 m; Category-6A up to 100 m
    Bracket Height:Low Profile and Full Height
    Ethernet Controller:Intel Ethernet Controller X540-BT2

    Supported Operating Systems:
    Windows 7 (IA32 and X64);
    Windows Server 2008 (x64 and IPF);
    Windows Server 2008 Core (x64 and IPF);
    Windows Server 2008 R2 (x64 and IPF)Windows Server 2008 R2 Core (x64 and IPF)
    Linux SLES 11 SP1;
    Microsoft Windows Server 2003*
    Microsoft Vista;
    SUSE; SLES 10 or later, Professional 9.2 or later;
    Microsoft Windows Virtual Server 2005 Red Hat Enterprise 4 or later;
    FreeBSD 5.x or later support;
    VMware; ESX 4.0/4.1, ESXi 5.0 support Fedora;
    EFI 1.1
    Products
    82571-GE-2T-X1 82571-GE-2T-X1
    82574-GE-1T-X1 82574-GE-1T-X1
    82576-GE-2T-X1 82576-GE-2T-X1
    I210-GE-1T-X1 I210-GE-1T-X1
    I350-GE-4T-X4 I350-GE-4T-X4
    Replacement for - EXPI9301CTBLK E1G42ET I210-T1 I350-T4
    Controller 82571 82574L 82576EB I210AT I350-AM4
    Port Configure (2x) RJ-45 (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (4x) RJ-45
    System Interface Type PCIe X1 PCIe X1 PCIe X1 PCIe X1 PCIe X4
    WOL X X Yes Yes Yes
    SR - IOV X X Yes X Yes
    Jumbo Frames Yes , up to 9.5KB Yes , up to 9KB Yes , up to 9.5KB Yes , up to 9.5KB Yes , up to 9.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12
    Unsupported Note Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode Vmware Esxi 7.0, Mac OS, Bypass Mode Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes X X Yes Yes
    Products
    X520-10G-1S-X8 X520-10G-1S-X8
    X520-10G-2S-X8 X520-10G-2S-X8
    X540-10G-1T-X8 X540-10G-1T-X8
    X540-10G-2T-X8 X540-10G-2T-X8
    X550-10G-1T-X4 X550-10G-1T-X4
    X550-10G-2T-X4 X550-10G-2T-X4
    Replacement for X520-DA1 X520-DA2 X540-T1 X540-T2 X550-T1 X550-T2
    Controller 82599EN 82599ES X540-AT2 X540-AT2 Intel X550-AT Intel X550-AT2
    Port Configure (1x) SFP+ (2x) SFP+ (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (2x) RJ-45
    System Interface Type PCIe X8 PCIe X8 PCIe X8 PCIe X8 PCIe X4 PCIe X4
    WOL X X X X X X
    SR - IOV Yes Yes Yes Yes Yes Yes
    Jumbo Frames Yes , up to 15.5KB Yes , up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
    Unsupported Note Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes Yes - Yes - Yes
    Products
    X710-10G-2S-X8 X710-10G-2S-X8
    XL710-10G-4S-X8 XL710-10G-4S-X8
    Replacement for X710-DA2 X710-DA4
    Controller X710-BM2 XL710-BM1
    Port Configure (2x) SFP+ (4x) SFP+
    System Interface Type PCIe X8 PCIe X8
    WOL X X
    SR - IOV Yes Yes
    Jumbo Frames Yes , up to 9.5KB Yes , up to 9.5KB
    Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
    Unsupported Note Mac OS, Bypass Mode Mac OS, Bypass Mode
    Windows 10 Teaming Yes Yes

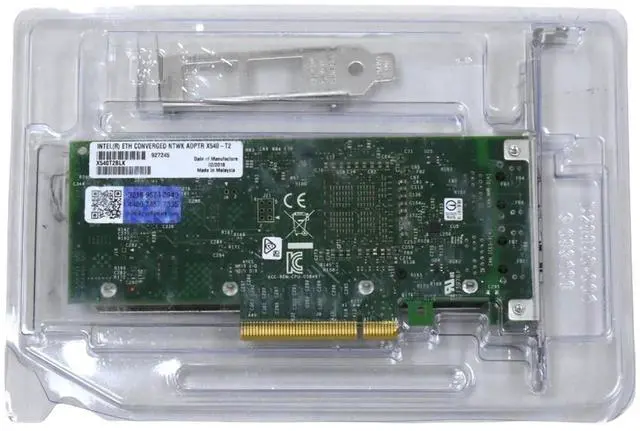

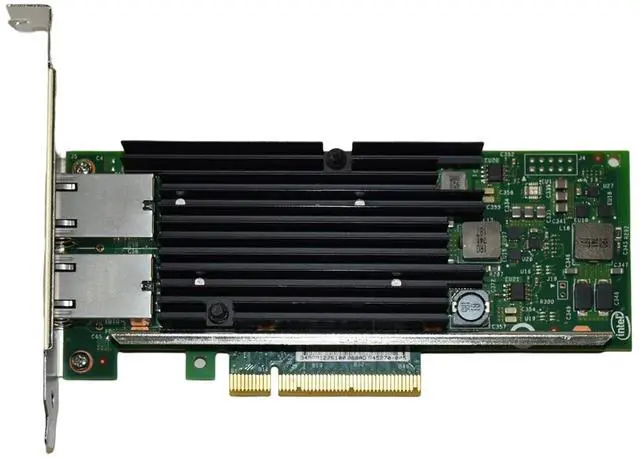

    image for this item
