10Gtek For 10 GbE Intel Ethernet Converged Network Adapter Card X550-T2 w/ Controller X550-AT2, Dual RJ45 ports to PCIe 3.0 x4, PCI Express Ethernet LAN Adapter Support Windows Server/Linux/ESX

(17)(1) Write a Review
  • Equipped with original Intel X550-AT2 controller chip which make the servers more stable.
  • Compatible with Windows Server 2008/ 2012, Linux, FreeBSD* 9 and FreeBSD* 10, UEFI* 2.1, UEFI* 2.3, VMware ESXi 5.1 (Limited Functionality), VMware ESXi 5.5.

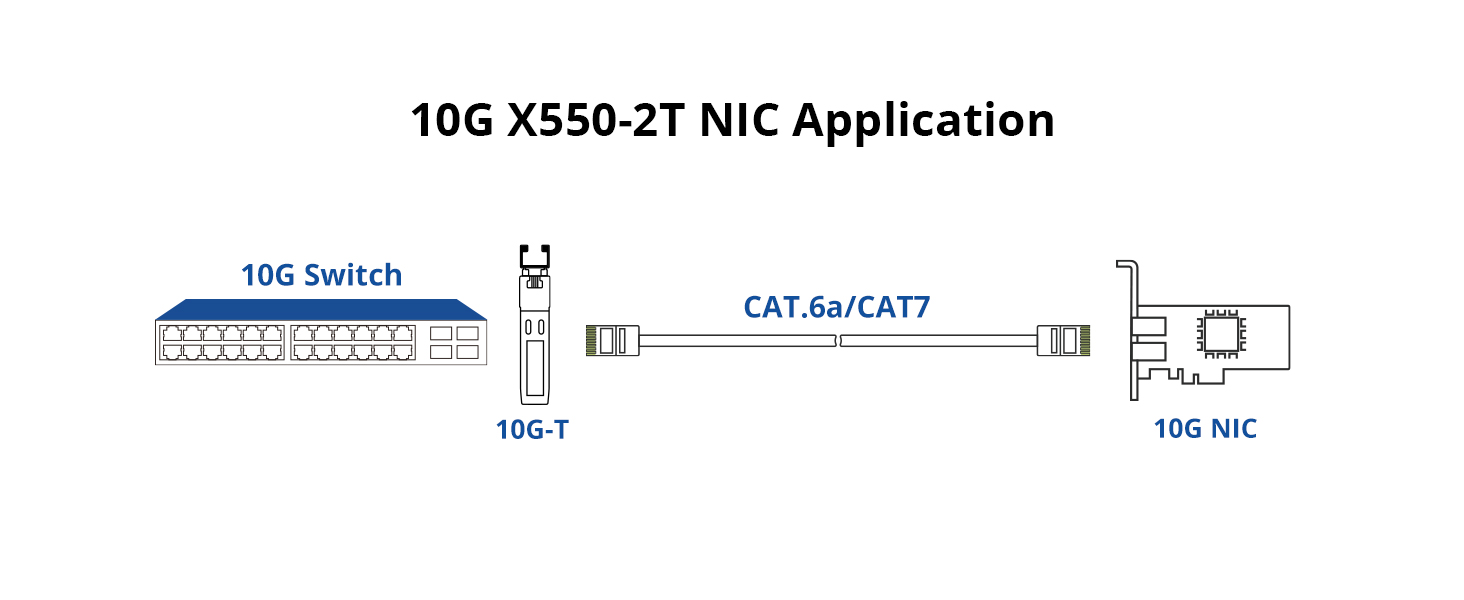

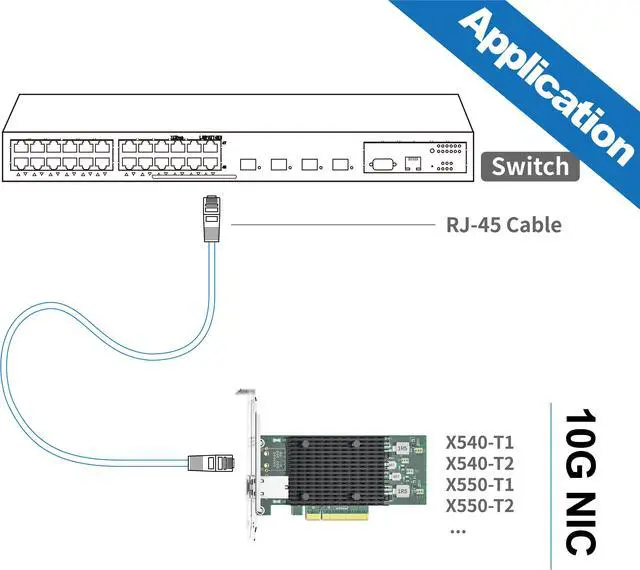

  • Dual copper RJ45 ports(100MbE/1GbE/10GbE) let you connect to network cable for meeting the demands of data center environments. PCIe v3.0 (8.0GT/s) (Compatible with 2.0 and 1.1), X4/X8/X16 Lane.

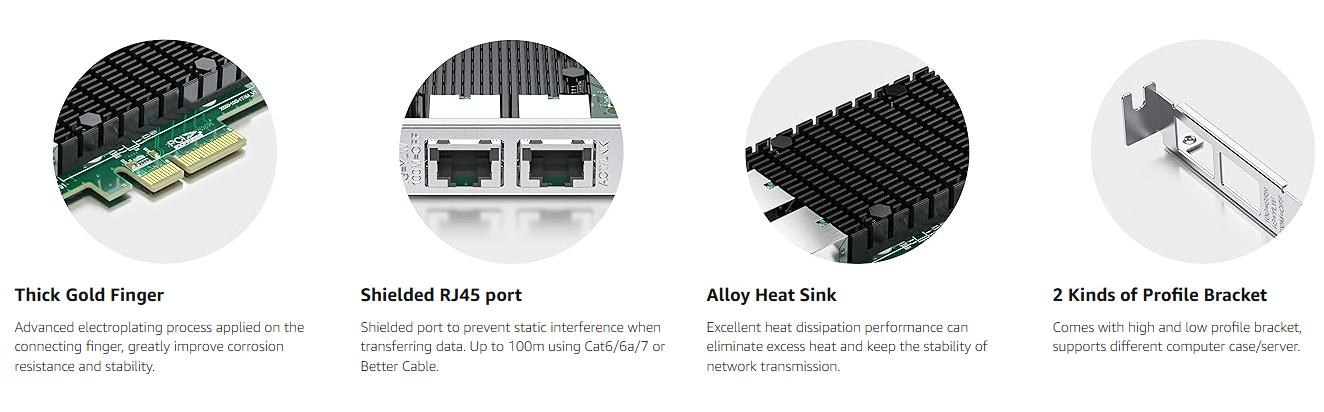

  • Driver CD is included natively. With profile bracket and additional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.
  • What You Get: 10Gtek 10GbE PCI-E X4 Network Card X550-10G-2T (compare to Intel X550-T2) x1, Driver CD x1, Low-profile Bracket x1
  • NOT support hot swaping!
Overview
Specs
Reviews (17)
Product description

Size:X550-10G-2T (2x 10GBase-T Port)

10 GbE Converged Network Adapter(CNA/NIC) with Dual RJ45 Port (1 GbE/10 GbE/100MbE)

Features:
IEEE 802.1Q* VLANs
IEEE 802.3 2005* flow control support
IEEE 10 GbE 802.3ap
IEEE 1000BASE-BX

Support for jumbo frames of up to 15.5 KB
Storage over Ethernet: iSCSI, FCoE, NFS
Support SNMP RMON
Suppor MSI-X
Support Tx TCP segmentation offload (IPv4, IPv6),Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
Suppor Virtual Machine Device queues2 (VMDq)

Specifications:
Part number.:X550-10G-2T-X4 (compare to Intel X550-T2)
Interface:Dual RJ45 Ports r(1 GbE/10 GbE/100MbE)

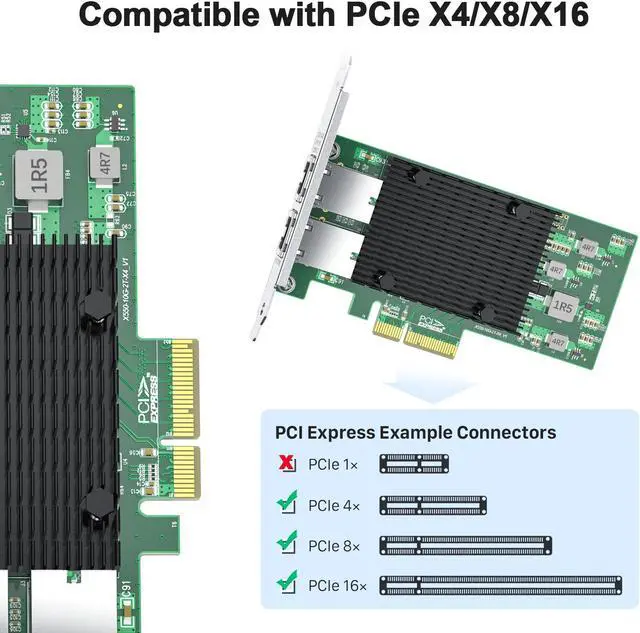

PCIPCI Express v3.0 (8.0GT/s) (Compatible with 1.1/2.0), X4/X8/X16 Lane
Thermal Design PowerTypical power:11.2w; Maximum power:13W
Operating Temperature:0 ° ~ 55 ° C (32 °F to 131 °F)
Storage Temperature:40 ° ~ 70 ° C (-40 °F to 158 °F)
Operating Humidity:90%, non-condensing

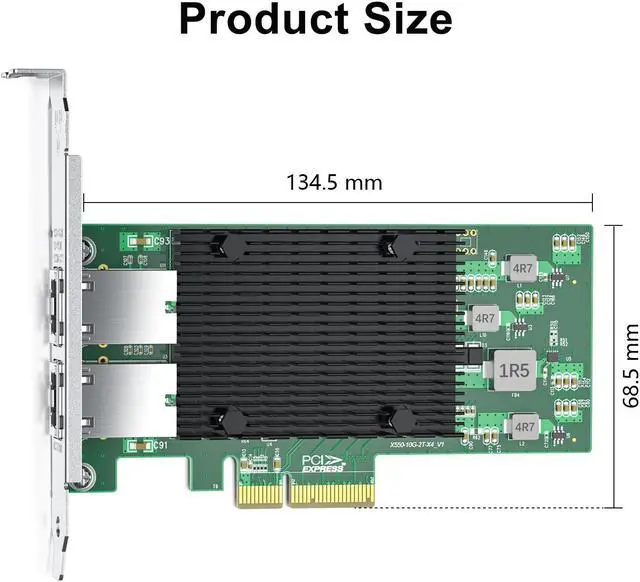

Dimension:130*68*1.6mm
Products
82571-GE-2T-X1 82571-GE-2T-X1
82574-GE-1T-X1 82574-GE-1T-X1
82576-GE-2T-X1 82576-GE-2T-X1
I210-GE-1T-X1 I210-GE-1T-X1
I350-GE-4T-X4 I350-GE-4T-X4
Replacement for - EXPI9301CTBLK E1G42ET I210-T1 I350-T4
Controller 82571 82574L 82576EB I210AT I350-AM4
Port Configure (2x) RJ-45 (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (4x) RJ-45
System Interface Type PCIe X1 PCIe X1 PCIe X1 PCIe X1 PCIe X4
WOL X X Yes Yes Yes
SR - IOV X X Yes X Yes
Jumbo Frames Yes , up to 9.5KB Yes , up to 9KB Yes , up to 9.5KB Yes , up to 9.5KB Yes , up to 9.5KB
Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows XP/7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 5/6/7, SLSE 11/12
Unsupported Note Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode Vmware Esxi 7.0, Mac OS, Bypass Mode Windows XP, Mac OS, Bypass Mode Mac OS, Bypass Mode
Windows 10 Teaming Yes X X Yes Yes
Products
X520-10G-1S-X8 X520-10G-1S-X8
X520-10G-2S-X8 X520-10G-2S-X8
X540-10G-1T-X8 X540-10G-1T-X8
X540-10G-2T-X8 X540-10G-2T-X8
X550-10G-1T-X4 X550-10G-1T-X4
X550-10G-2T-X4 X550-10G-2T-X4
Replacement for X520-DA1 X520-DA2 X540-T1 X540-T2 X550-T1 X550-T2
Controller 82599EN 82599ES X540-AT2 X540-AT2 Intel X550-AT Intel X550-AT2
Port Configure (1x) SFP+ (2x) SFP+ (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (2x) RJ-45
System Interface Type PCIe X8 PCIe X8 PCIe X8 PCIe X8 PCIe X4 PCIe X4
WOL X X X X X X
SR - IOV Yes Yes Yes Yes Yes Yes
Jumbo Frames Yes , up to 15.5KB Yes , up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB
Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
Unsupported Note Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode
Windows 10 Teaming Yes Yes - Yes - Yes
Products
X710-10G-2S-X8 X710-10G-2S-X8
XL710-10G-4S-X8 XL710-10G-4S-X8
Replacement for X710-DA2 X710-DA4
Controller X710-BM2 XL710-BM1
Port Configure (2x) SFP+ (4x) SFP+
System Interface Type PCIe X8 PCIe X8
WOL X X
SR - IOV Yes Yes
Jumbo Frames Yes , up to 9.5KB Yes , up to 9.5KB
Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
Unsupported Note Mac OS, Bypass Mode Mac OS, Bypass Mode
Windows 10 Teaming Yes Yes

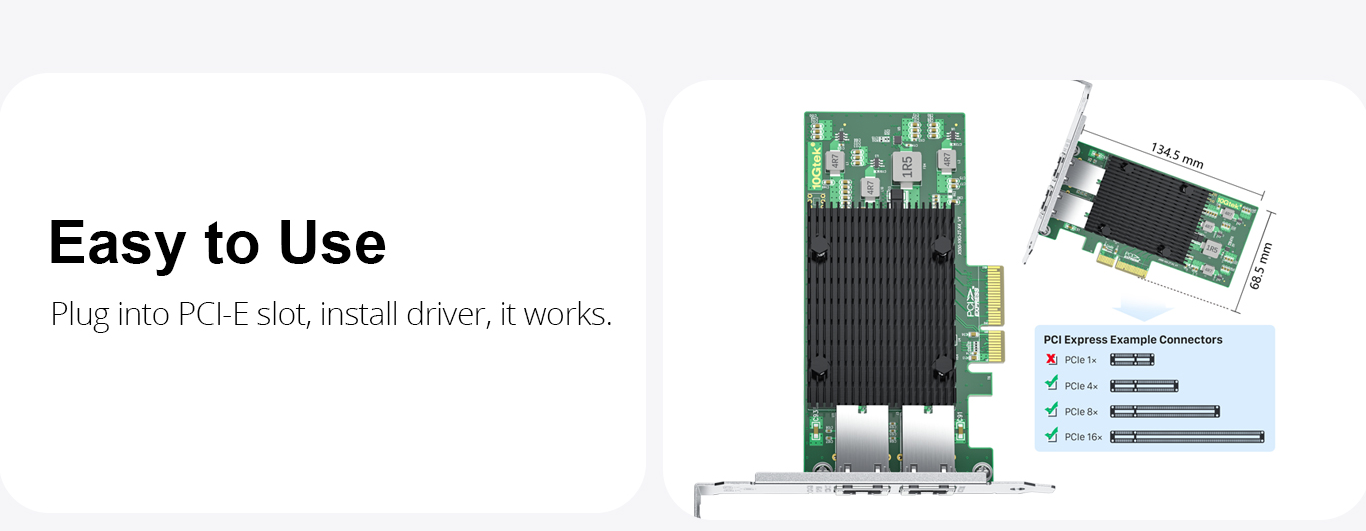

image for this item
X550-2T
X550-2T
X550-2T
X550-2T
X550-2T
X550-2T
