Specifications: Weight Capacity: 6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse
Motion may be restricted when using 22"–24" monitors in portrait mode
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Five-inch (13 cm) height adjustment ergonomically accommodates average range of users
Meets tip test requirements of UL Specification 1678 + Removal of lock screw allows portrait to landscape rotation (90°)
Compatible with most 15"–24" displays, and most small or ultra small form factor CPUs.
Maximum CPU size = 15"W x 14"H x 4.5"D (38 x 35.6 x 11.4 cm); minimum CPU size = 7"W x 7"H x 2"D (18 x 18 x 5.1 cm). Provided rubber spacer must be used to accommodate CPU depths of less than 3" (7.6 cm)
Moun...
Specifications: Recommended Use: LCD display / keyboard / mouse / CPU
Recommended Display Size: 30"
Flat Panel Mount Interface: 100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 400 x 200 mm
Max Load Weight 28 lbs
Color: Gray, black
Adjustable height, rotating, tilt, locking casters, cable box
Specifications: Wall Track is a low-cost, zero-footprint mounting system that attaches to most vertical surfaces. It accommodates an entire computer workstation.
Separately-ordered brackets are required to attach components to Wall Track (view + Accessories). The height of components can be adjusted by loosening set-screws on these brackets.
Description: 42" Wall Track (aluminum) with cable management channel covers
Dimensions: 42" x 5" x .87" (1067 x 127 x 22 mm)
OSHPD Pre-approval Number OPA-0620
Fasteners for attaching to wall not included. Fasteners may be purchased from Ergotron: part number 97-531 for metal or wood studs; part number 90-011 for hollow walls
Separately-order brackets required to attach Ergotron components: part number 97-091 for LX & MX Arms, Neo-Flex Wall Mounts, 400, 200 and 100 Series Arms and Pivot...

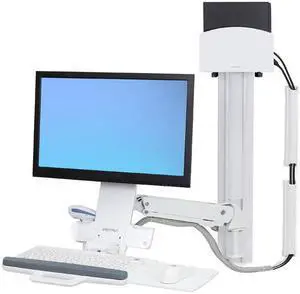

Specifications: Weight Capacity:
Display = 6 - 18 lbs. (2.7 - 8.2kg) or up to 25 lbs (11.4kg) with tilt and lift lock-out features engaged
keyboard, mouse and barcode scanner = 4 lbs (1.8kg)
CPU = 50 lbs (22.7kg)
Lift: 25" (64cm)
Tilt: Up +25 degree/ Down -5 degree
Mounting Pattern: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Pan: 360 degree
Rotation: 360 degree
Keyboard Tray Dimensions: 18.6" x 9" (47.2 x 22.8cm)
CPU Dimension: 1-3/8" to 3-3/4" (35 to 95mm) wide; accommodates most small form factor and ultra small form factor CPUs
Monitor Size: Up to 24"
Specifications: Weight Capacity: display = 6-18 lbs (2.7-8.2 kg), worksurface = 10 lbs (4.5 kg), keyboard, mouse and barcode scanner = 4 lbs (1.8 kg), CPU = 50 lbs (22.7 kg)
Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion, LCD adjusts 5" (13 cm) independently, maximum LCD height adjustment = 25" (64 cm)
Monitor up/down tilt: +25 degree /-5 degree
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)
Keyboard tray: 18.6"W x 9"D (47.2 x 22.8 cm)
Back-tilt keyboard tray adjustable: 0 degree to -10 degree
CPU Size Range: 1-3/8" to 3-3/4" (35 to 95 mm) wide, accommodates most small form factor and ultra small form factor CPUs
Product Weight: 39.6 lbs (18 kg)
Specifications: Complies with UL Tip Standards 1667 and 1678
Rugged plastic-composite shelf conveniently attaches to cart at any height
Modular cable channel system is adaptable for various wiring configurations
Add the MMC Camera Shelf Kit to place adjustable camera shelf above the display (ordered separately); shelf is not compatible with the NF MMC LD, 24-190-057, when using the optional small LCD monitor pivot (includes 75 mm and 100 mm mounting holes), which is typically used with 25 lbs (11. 4 kg) to 36 lbs (16.3 kg) displays. As an alternative, the NF WideView cart, 24-189-055, does accommodate this size monitor and a camera shelf
CPUs attach safely to rear of cart with Universal CPU Holder accessory (ordered separately). Compatible with CPU sizes from 12" H x 3" D to 18" H x 8.5" D (300 x 80 mm to 460 x 220 mm)...

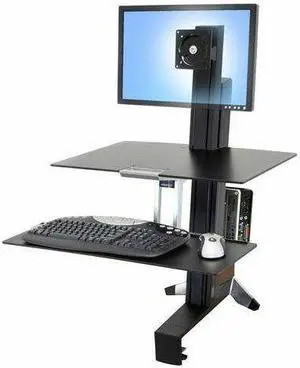

Specifications: Description: Worksurface for WorkFit-S Sit-Stand Workstations (black)
Includes worksurface, mounting brackets with integrated handle, and mounting hardware
Worksurface Dimensions: 0.25" H x 23" W x 15 "D (6 x 585 x 380 mm)
Cannot be added to system where Tablet/Document Holder accessory 97-558-200 is installed
Installation of the worksurface will not impact normal 20" (51 cm) range of sit-stand height adjustment, but may impact the relative vertical adjustment of larger displays when in portrait orientation
When this accessory is added to the WorkFit-S, total weight capacity of the workstation is reduced by 6 lbs (2.7 kg)
