Specifications: Weight Capacity:
Display = 6 - 18 lbs. (2.7 - 8.2kg) or up to 25 lbs (11.4kg) with tilt and lift lock-out features engaged
keyboard, mouse and barcode scanner = 4 lbs (1.8kg)
CPU = 50 lbs (22.7kg)
Lift: 25" (64cm)
Tilt: Up +25 degree/ Down -5 degree
Mounting Pattern: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Pan: 360 degree
Rotation: 360 degree
Keyboard Tray Dimensions: 18.6" x 9" (47.2 x 22.8cm)
CPU Dimension: 1-3/8" to 3-3/4" (35 to 95mm) wide; accommodates most small form factor and ultra small form factor CPUs
Monitor Size: Up to 24"
Specifications: Description: DS100 Crossbar Extender, Long (black)
Includes: Long Extenders, Center Display Bracket, Attachment hardware
Display: Maximum physical outside width of display = 24.5" (62 cm). This is slightly more than typical display with a 26" screen.
Weight Capacity: 31 lbs (14 kg) per monitor
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Specifications: Description: Worksurface for WorkFit-S Sit-Stand Workstations (black)
Includes worksurface, mounting brackets with integrated handle, and mounting hardware
Worksurface Dimensions: 0.25" H x 23" W x 15 "D (6 x 585 x 380 mm)
Cannot be added to system where Tablet/Document Holder accessory 97-558-200 is installed
Installation of the worksurface will not impact normal 20" (51 cm) range of sit-stand height adjustment, but may impact the relative vertical adjustment of larger displays when in portrait orientation
When this accessory is added to the WorkFit-S, total weight capacity of the workstation is reduced by 6 lbs (2.7 kg)

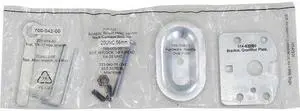

Specifications: Description: Spacer kit for mounting to 75 x 75 mm recessed monitors (black)
Includes (1) spacer and (4) Phillips pan head M4 x 25 mm screws

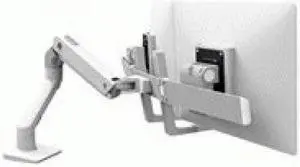

Specifications: Weight Capacity: individual LCD weight = 7 to 20 lbs (3.2 to 9.1 kg)
Screen = 24"
Lift: 13"
Tilt: 75°
Pan: 360°
Rotation: 360°
Vesa: MIS-D
Includes two (2) LCD arms and extensions, pole, desk clamp
Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk clamp attaches to edge up to 2.6" (66 mm) thick
A separately ordered grommet mount accessory (98-035) is available to attach the arm through a hole in the desktop
This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissi...
Specifications: Complies with UL Tip Standards 1667 and 1678
Rugged plastic-composite shelf conveniently attaches to cart at any height
Modular cable channel system is adaptable for various wiring configurations
Add the MMC Camera Shelf Kit to place adjustable camera shelf above the display (ordered separately); shelf is not compatible with the NF MMC LD, 24-190-057, when using the optional small LCD monitor pivot (includes 75 mm and 100 mm mounting holes), which is typically used with 25 lbs (11. 4 kg) to 36 lbs (16.3 kg) displays. As an alternative, the NF WideView cart, 24-189-055, does accommodate this size monitor and a camera shelf

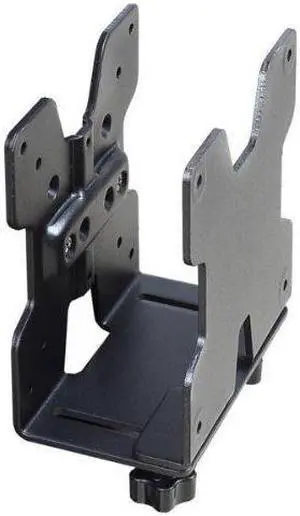

CPUs attach safely to rear of cart with Universal CPU Holder accessory (ordered separately). Compatible with CPU sizes from 12" H x 3" D to 18" H x 8.5" D (300 x 80 mm to 460 x 220 mm)...
