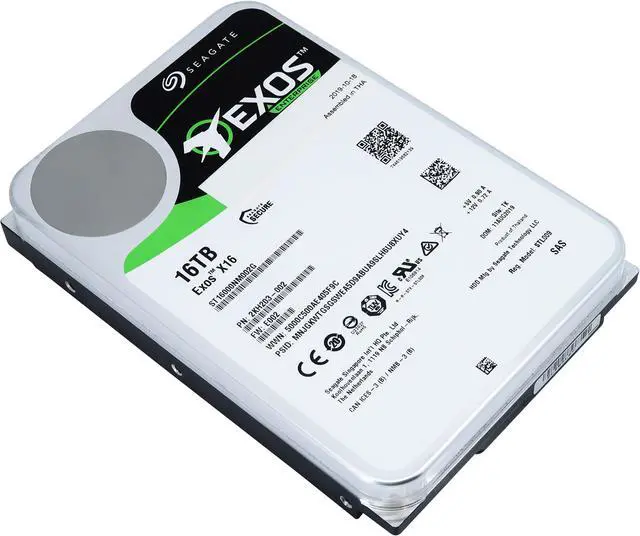

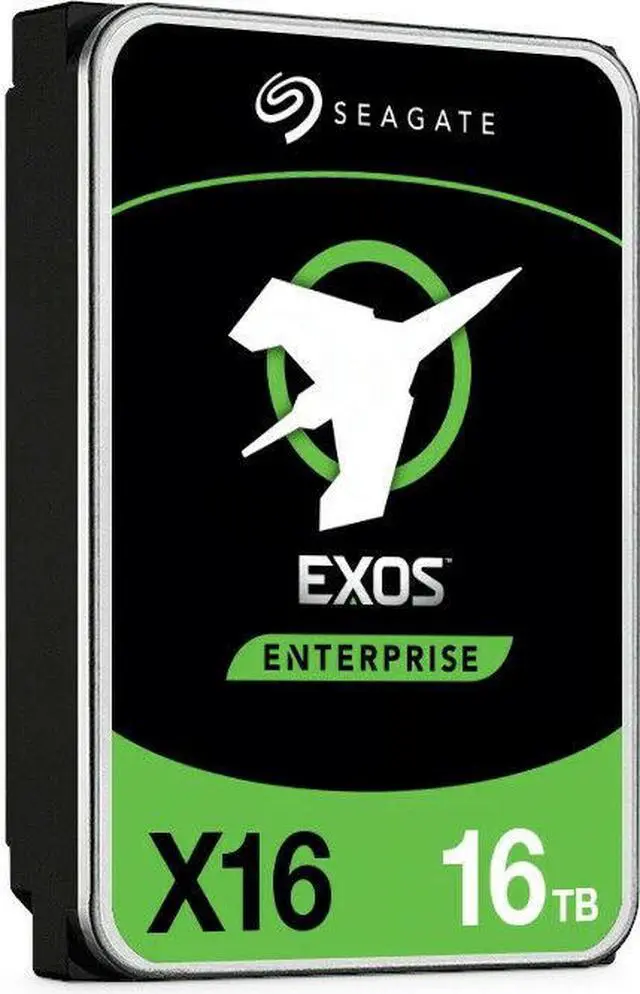

Seagate Exos X16 16TB SAS 12Gb/s 3.5" Enterprise HDD (ST16000NM002G)

Compeve SKU: 366600135913

Storage
Storage Capacity 16 TB
Cache Memory 256 MB
Performance
Interface SAS III (12 Gb/s)
Write Speed Random: 440 IOPS
Read Speed Maximum: 261 MB/s
Random: 170 IOPS
Latency 4.2 ms
Physical
Drive Type HDD
Form Factor 3.5"
Noise Level 3.0 dB (Active)
2.8 dB (Idle)
HDD Specs
Spindle Speed (RPM) 7200 RPM
Heads 18
Areal Density 1028 Gb/in²
Disk Sector Format 512e, Advanced Format (4Kn)
Reliability / Data Integrity
Annualized Failure Rate (AFR) 0.35 %
Endurance (Total Bytes Written) 550 TB
Load/Unload Cycles 600,000
Mean Time Between Failures (MTBF) 2.5 Million Hours
Non-Recoverable Read Errors per Bits Read 1 in 1015
Electrical
Power Draw 5.0 W (Idle)
10.2 W (Active)
6.2 W (Active)
Supported Voltage 5 VDC, 12 VDC
Environmental
Operating Shock 50 G / 2.0 ms
Storage Shock 200 G / 2.0 ms
Operating Vibration 2.27 G / 2 to 500 Hz
Operating Temperature 41 to 140°F / 5 to 60°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 5 to 95%
Storage Humidity 5 to 95%
Operating Altitude -1,000 to 10,000' / -304.80 to 3048 m
Storage Altitude -1,000 to 40,000' / -304.80 to 12,192 m
General
Dimensions (W x H x D) 4.01 x 1.03 x 5.79" / 101.85 x 26.11 x 147 mm
Weight 1.48 lb / 0.67 kg
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 8.9 x 6.1 x 2.9"
