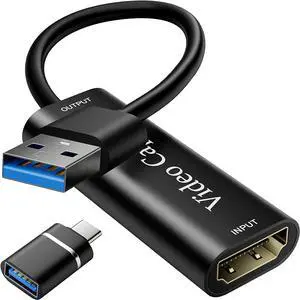

Specifications: HDMI Resolution: Max input can support 3840x2160@30Hz / 4K Video Output Resolution: Max output can be 1920x1080@30Hz Video Input Format: 8 / 10 / 12-bit Deep Color Video Output Mode: YUV / JPEG Support Audio Format: L-PCM Support AWG26 HDMI Standard Cable: input =15 meters, AWG26 HDMI standard cable. Maximum Working Current: 0.4A / 5VDC Operating temperature range: (-10 to + 55°C ) Dimension (L x W x H): 2.52" x 1.10" x 0.51" Weight: 0.05 lb.
Package Contents: 1 x Audio Video Capture Card HDMI to USB 1 x User Manual
Others: Single VGA output connector, on a compatible system
Graphics hardware and display driver supporting a 2048 x 768 or 2560 x 1024 resolution
Specifications: Automatically detected display modes*:
1920 x 480 (3 x 640 x 480) @ 60Hz to 3840 x 1024 (3 x 1280 x 1024) @ 60Hz
Additional display modes enabled by running TripleHead2Go Mode Expander software:
2560 x 1024 (2 x 1280 x 1024) @ 60Hz to 3840 x 768 (2 x 1280 x 768) @ 60Hz
* GPU dependent
EMC certifications: Class B - CE, CSA, FCC, VCCI
Connector box size (width x height x depth): 4.2" x 1.0" x 3.6"
Specifications: Connections:
Multiple Rate Support: HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.
Supported Codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade: Firmware built into software driver. Loaded ...
Specifications: Device Control:
Sony compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Supported Codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR & DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation: PCI Express 4...
Specifications: Supported APIs:
Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
Linux
- V4L2
- ALSA
Supported Software
VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input Features
Support for input video resolutions up to 2048x2160 pixels
HDMI Specific Features:
225MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/ Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Supp...
Specifications: Supported APIs:
Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
Linux
- V4L2
- ALSA
Supported Software:
VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input Features: Support for input video resolutions up to 2048x1080 pixels
SDI Specific Features:
Integrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz (channels 1-8 from the 16 available in the SDI spec)
Support for extraction of audio format...
Specifications: Device Control:
Sony compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Supported Codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software:
Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation: PCI...
