Specifications: Industry Standards:
- USB 3.0 Specification Rev. 1.0
- USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
- PCI Express Base Specification Rev. 2.0
- Intel xHCI Specification Rev. 1.0
Interface: USB 3.0
Connector Type(s): 1 - PCI Express x4 Male
External Ports: 4 - USB 3.0 A (9 pin; SuperSpeed) Female
Internal Ports:
- 1 - LP4 (4 pin; Molex Large Drive Power) Female
- 1 - SATA Power (15 pin) Plug
Maximum Cable Length: 9.8 ft [3 m]
Maximum Data Transfer Rate: 5Gbps per 2 ports - 10Gbps Total
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

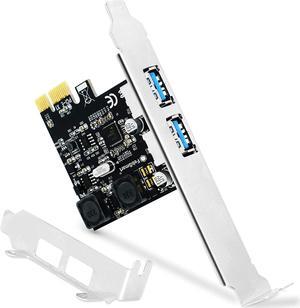

Specifications: Bus Type: PCI Express Mounting Type: Full Profile PCI slot cover Chipset: VIA VL805 Interface: 2x USB 3.0 Port Type-A & Internal USB 20pin header Data Transfer Rate: USB 3.0 - 5 Gbit/s Connector Type (s) 1 - PCI Express x1 Male External Ports: 2x USB 3.0 Port Type-A Female Internal Ports 2 - USB 3.0 20pin male Power Supply: Build in Self-Powered Technology,Owns individual 2A power supply,no additional power input is required. Supports motherboard PCI-E X1 X4 X8 X16 slot Compatible OS: Compatible with 64-bit and 32-bit Windows 10 / 8.1 / 8/7 / XP.
Package Contents: 1 x PCIe USB 3.0 PCI express card,1 x Low Profile PCI Slot Cover
External Ports: 1 x DB 25-pin Parallel Female
2 x DB 9-pin Serial Male
Operating Systems Supported: DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, and Mac OS 10.4.x and up
Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0
Specifications: Bus Type:PCI Express
Type Standard:Profile (LP bracket incl.)
Chipset:NEC UPD720201
Interface: USB 3.0 Port
Type and Rate :USB 3.0 - 5 Gbit/s
Connector Type(s): 1 - PCI Express x1 Male
External Ports: 4 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports : 1 - SATA 15pin interface
