Specifications: Product Name: DAE Disk Array Enclosure
Drives per DAE (SATA/SAS) : 8x 3.5” (or 2.5”)
Storage Capacity (Max): 144TB
Holds up to eight 3.5”/ 2.5”drives. The front of the DAE includes LEDs to indicate power and fault status.
Product main material: Aluminium alloy
Product size: 13.7*5.9*11.6 inch
Product weight: 11 lbs
HDD Count Supported: 2.5" 3.5" SATA SAS Hard Drive
Dimensions: Height:3.4" x Width:6.7" x Depth:11.4"
Specifications: Chipset ID: VL812+ASM1053E
Color: Black
Compatible Drive Types (Type and Rate): SATA
Drive Connectors: SATA Data & Power Combo (7+15 pin) Receptacle
Drive Installation: Removable
Drive Size: 2.5in & 3.5in
Enclosure Type: Plastic
Fan(s): Yes
Fans: 40 mm
Host Connectors: USB 3.0 B (9 pin ; SuperSpeed) Female
Humidity: 20%RH ~ 80%RH
Included in Package: Instruction manual
Universal power adapter (NA/EU/UK/AUS)
USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock
USB 3.0 Cable
Input Current: 2.5A
Input Voltage: 100 ~ 240 AC
Insertion Rating: 15,000 Cycles
Interface: USB 3.0
LED Indicators: Drive power/activity LED
Max Drive Capacity: Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
Number of Drives: 4
OS Co...

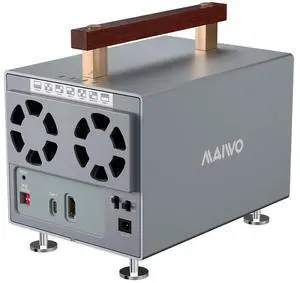

Specifications: Product name: 8 Bay Hard Drive RAID Enclosure for 2.5/3.5 inch SATA SSD/HDD
Product function: Data transfer read&write&backup
Model number: K8AA
Package size 45.9*45.9*26.4CM/ 18*18*10.3inch
Product size 13.7*13.6*5.9inch
Material Aluminum
Color Black
Weight 8.13kg
Supported hard disk 2.5/3.5 SATA HDD/SSD & mSATA
Hardware Interface FireWire eSATA, USB 3.0 Type C
Power Source 350W
Transfer rate Max 5Gbps
Max capacity 16TB*8=128TB
Features built-in smart temperature management system, Lcd finger-touch screen display the working temperature and working time duration
Specifications: Interface: USB 3.0 & eSATA
Number of Drives: 2
Drive Size: 2.5in & 3.5in
Drive Type: SATA
Drive Installation: Removable
Chipset ID: JMicron - JMS562
Drive Connectors: 2 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors:
1 - eSATA (7 pin; Data) Female
1 - USB 3.0 B (9 pin; SuperSpeed) Female
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Type and Rate: SATA III (6 Gbps)
Max Drive Capacity: Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
Insertion Rating: 15,000 Cycles
Specifications: MTBF: 30,000
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Drive Connectors: 2 x SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors: 1 x USB Type-B (9 pin) USB 3.0 Female
Specifications: Chipset ID: JMicron JMB394 + JMS539
Color: Black
Drive Connectors: 4 - SATA Data & Power Combo (7+15 pin) Receptacle
Drive Size: 2.5in / 3.5in
Drive Type: SATA
Enclosure Type: Plastic
Fans: 2 - 60 mm
Host Connectors: 1 - eSATA (7 pin; Data) Receptacle
Host Connectors: 1 - USB 3.0 B (9 pin; SuperSpeed) Female
Input Voltage: 110 ~ 240 AC
Insertion Rating: 15,000 cycles per bay
LED Indicators: 4 - Drive Power/Activity
Max Drive Capacity: Tested up to 3.0 TB
Number of Drives: 4
OS Compatibility: Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, and Linux
Output Current: 6500mA
Output Voltage: 12 DC
Port Multiplier Support: Yes
Power Adapter Included: Yes
Type and Rate: SA...
Specifications: Power requirement: 5VDC
HDD size support: 2.5" hard drive(compatible with 9.5mm height drive only)
HDD interface support: SATA hard drive
Minimum System Requirements: Windows XP, Vista, 7 / Mac OS 10.x / Linux
Computer with USB 3.0 super speed or USB 2.0 interface
Enclosure interface: USB3.0 (Max. 5Gbps) compatible with USB 2.0
Maximum Capacity (per Bay): Up to 1TB (9.5mm thickness)
Specifications: Support Drive Size: 1 x M.2 SATA SSD (2230/2242/2260/2280)
Host Interface: USB 3.2 Gen 1
Power Input: Via USB
Transfer Rate: Up to 5Gb/s (Depending on hard drive speed)
Structure / Material: ABS Plastic
Product Dimension (L x W x H): 60 x 14 x 122.5mm
Product Net Weight: 45g
Drive Activity LED Indication: SSD power: solid blue; SSD access: flashing blue
Specifications: Dimensions: 87.5 x 134 x 18.6 mm
Weight: 181~205g (by capacity)
Standard Compliance:USB 3.0 / 2.0
Data Transfer Rates:Max. 5 Gb/s (USB 3.0 Mode); Max. 480 Mb/s (USB 2.0 Mode)
Power Supply:DC 5V (Power supplied through USB)
Supported Operating Systems:Windows 8 / 7 / Vista / XP / 2000 , Linux 2.6.31 or later, Mac OS 10.5 or later (only USB 2.0 currently supported)
Operating Temperature:5?~ 55?
Storage Temperature:-40?~ 70?
Capacity: 500GB . 1TB . 2TB
Color:Black, White
Three-year warranty
Dimensions: 104 x 40 x 15 mm / 4.1 x 1.6 x 0.6 inches
Specifications: M.2 size: Length support 2230, 2242, 2260, 2280
M.2 Support: M.2 NVMe with "M" Key Only
USB cable connector: USB-C to USB-C
USB cable length: 300mm / 11.8 inches
Specifications: Drives Supported 2.5" HDD and SSD
CONNECTIONS:
Side A - Connector 1: MICRO-USB B (FEMALE)
Side B - Connector 1: 22 PIN SATA + POWER (FEMALE)
Connector Plating: Nickel
Contact Plating: Nickel
USB Specification: USB 3.1 Gen 1 (up to 5 Gbps)
Certifications: Tested to CE, FCC, ROHS
Operating Temperature Range: 50 to 122 degree F (10 to 50 degree C)
Relative Humidity: 10% to 80%
