Specifications: Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface:
1 x Gigabit port
1 x PoE+ Gigabit port
4-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer:
RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Power:
Input: 48 – 56 V DC
Compatible power supply: TI-S12048 (sold separately)
Consumption: Max. 72 Watts
PoE budget: 60 Watts
Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Pin 4,5 for power+ and pin 7,8 for power- (mode B)
Specifications: Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Single-mode
I/ O Expansions
Total Number of Expansion Slots:
1
Expansion Slot Type:

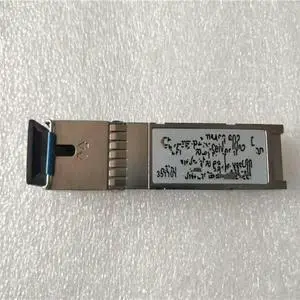

SFP (mini-GBIC)
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-TX
100Base-TX
100Base-T
Power Description
Power Source:
PoE+
Power Consumption:
60 W
Plug/Connector Type:
Terminal Block (3 Wire)
Type N
Physical Characteristics
Form Factor:
DIN Rail Mountable
Wall Mountable
Height:
1.3"
Width:
3.2"
Depth:
4.1"
Weight (Approximate):
5.40 oz
Miscellaneous
P...
Specifications: Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Single-mode
I/ O Expansions
Total Number of Expansion Slots:
1
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-TX
100Base-TX
100Base-T
Power Description
Power Source:
PoE+
Power Consumption:
60 W
Plug/Connector Type:
Terminal Block (3 Wire)
Type N
Physical Characteristics
Form Factor:
DIN Rail Mountable
Wall Mountable
Height:
1.3"
Width:
3.2"
Depth:
4.1"
Weight (Approximate):
5.40 oz
Miscellaneous
Package Contents...

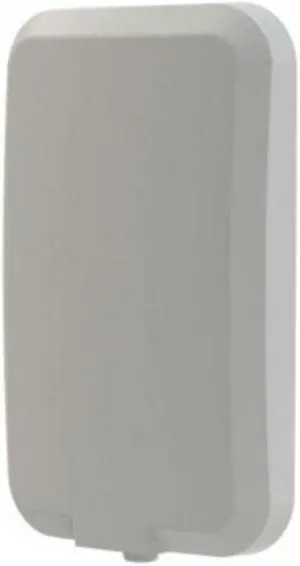

Features: High Power and External Dual Polarization Antenna: With high transmission power up to 30dBm/1000mW and external dual polarization directional dual-band antenna, WL-570HA1 gets a perfect performance in long-distance. Dual Band: Speed up to 2.4GHz 150Mbps and 5GHz 433Mbps, high transmission power breaking down the barries of WiFi Passive PoE: Passive
