Specifications: Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access

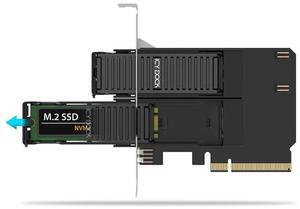

x4 PCI Express to M.2 PCIe SSD Adapter
M.2 NGFF SSD (NVMe or AHCI) Adapter Card
x4 PCIe expansion card
Expansion bay adapter supports M key M.2 NGFF PCIe SSD
Add a high speed 4-lane M.2 NGFF SSD such as Samsung 950 Pro or Samsung SM 951 to your PC
Wide compatibility with M.2 SSDs (NVMe and AHCI): 110mm, 80mm, 60mm and 42mm
OS independent for fast and easy set-up
Specifications: Drive Connectors: 1 - M.2 (NGFF) Receptacle
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Maximum Data Transfer Rate: 6 Gbps
Type and Rate: SATA III (6 Gbps)
Specifications: Support Drive Size: 4 x M.2 SSD (2230~22110)
Compatible Drive Type: NVMe PCIe Gen 4x4
Number of Drives: 4
Support Drive Length: 30mm - 110mm

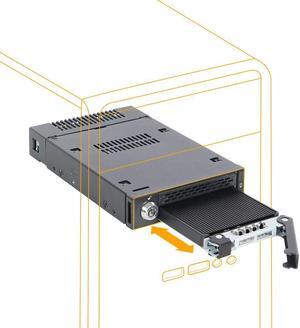

Drive Bay: 1 x 5.25" half height bay
Host Interface: 4 x OCuLink(SFF-8612), pin-out defined by SFF-9402 Rev 1.1
Power Input: 2 x 15pin SATA power connector
Transfer Rate: Up to 64Gbps (Depending on SSD Speed)
Support SSD Capacity: No Limitation
Drive Cooling (Active): 2 x 40*40*20mm Fan
Structure / Material: Full Metal
Drive Security: 2 segment key lock
Support Hot-Plug: Yes (host must support hot-plug function)
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
M.2 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140...
